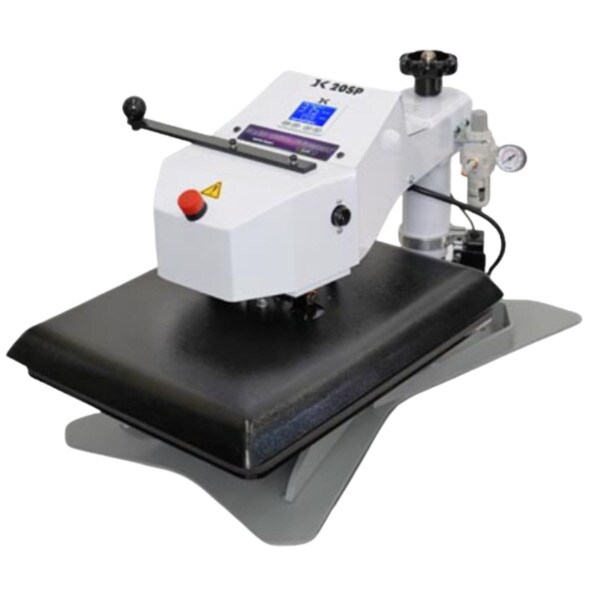

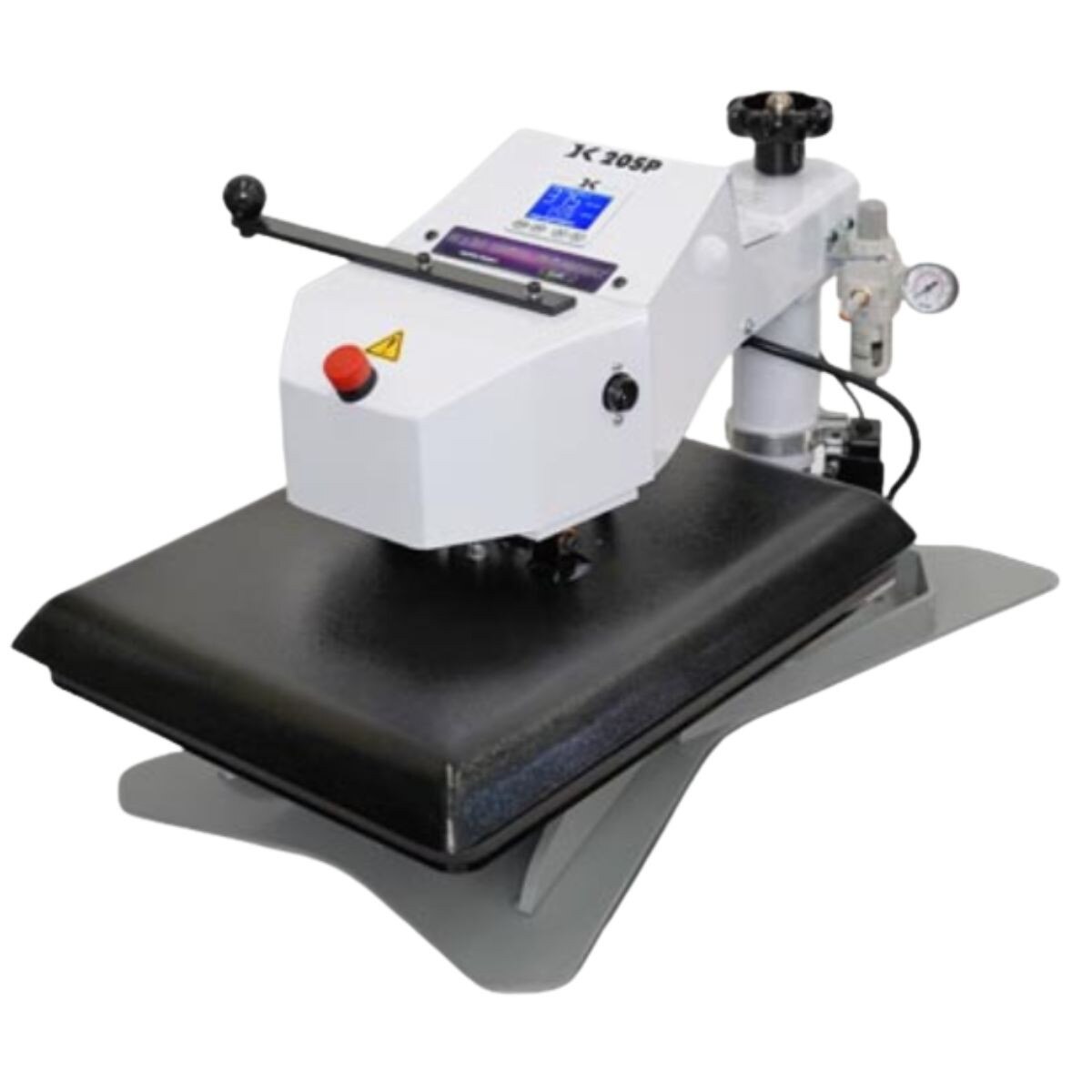

GEO KNIGHT DIGITAL KNIGHT 16X20S SWING-AWAY

An air-operated automatic tabletop swing-away heat transfer press is the DK20SP. With the advantages of push button operation, completely digital temperature and time control, strong casting design, and an economical automatic heat press price, the DK20SP offers a production-oriented heat press. It comes in a heater block dimension of 16" x 20".

The DK20SP uses the same Digital Knight control technology as the DK20S series, but instead of shuttling, it swings away smoothly. The DK20SP is the appropriate press for satisfying needs that are more demanding than what a manual transfer press and operator can handle. It also produces results that are incredibly consistent. The DK20SP is an industrial-grade alternative to the high output 394 Factory Shuttle Press machines and heavy duty manual heat presses like the DK20 and DK20S.


FEATURES

• All-Thread™ table loading design
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Air regulator and gauge 20-100 PSI range (compressor req)
• Total applied force of 3000 lbs max
• 70 Programmable presets
• Solid steel welded framework
• Interchangeable tables
• SuperCoil-Microwinding™ heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F - can show °C or °F
• User selectable end-of-cycle alarms
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen

GEO KNIGHT WARRANTY

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

SPECS

• Air Compressor Required (min): 7gal, 1cfm, 100psi, 1/4" line
• Weight: 220 Lbs
• Electrical: 1800W / 15A / 120V
• Shipping Dims: 32" D x 27" W x 18" H
• (add $35 for 220V international)
