COMET LIGHT QUARTZ FLASH
Details

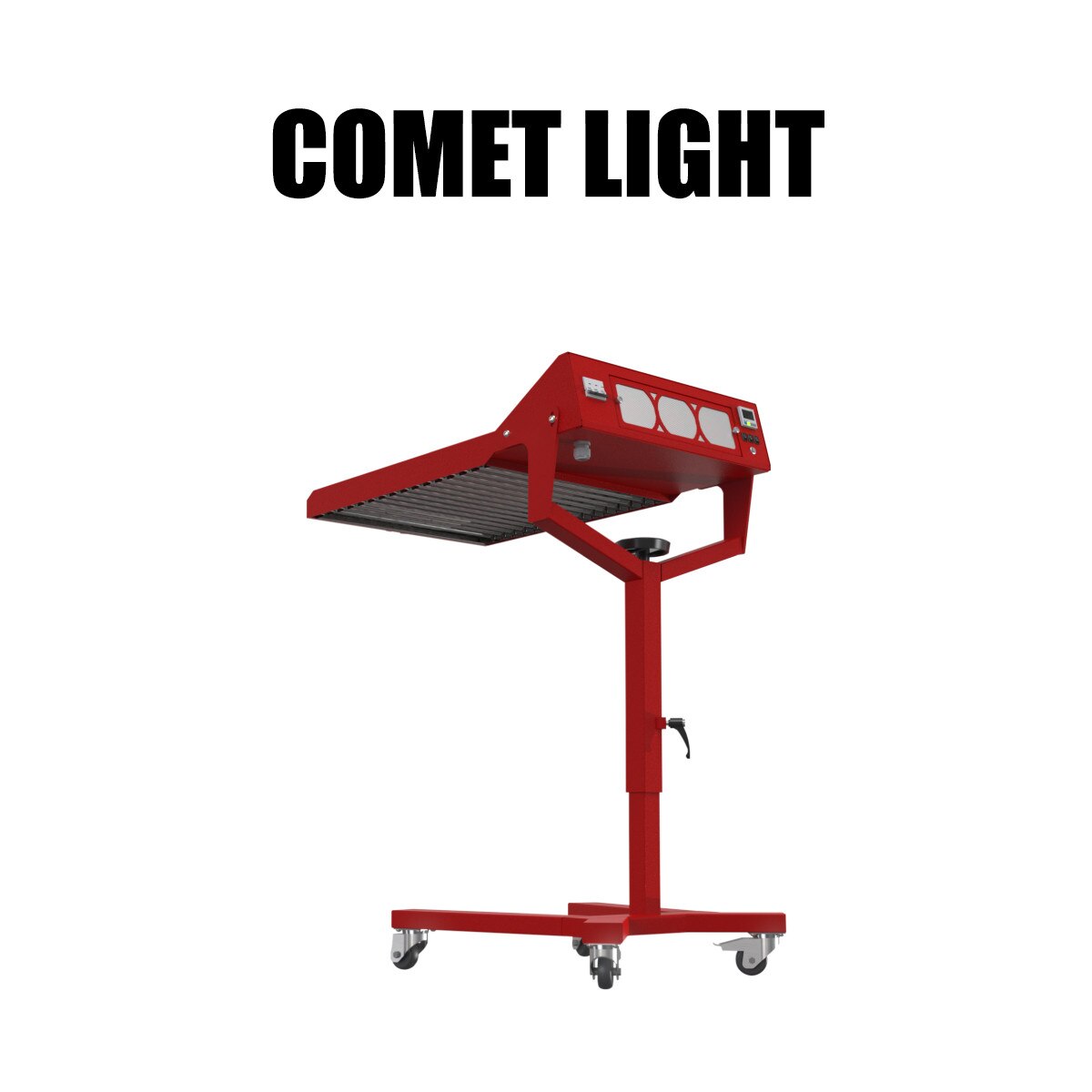

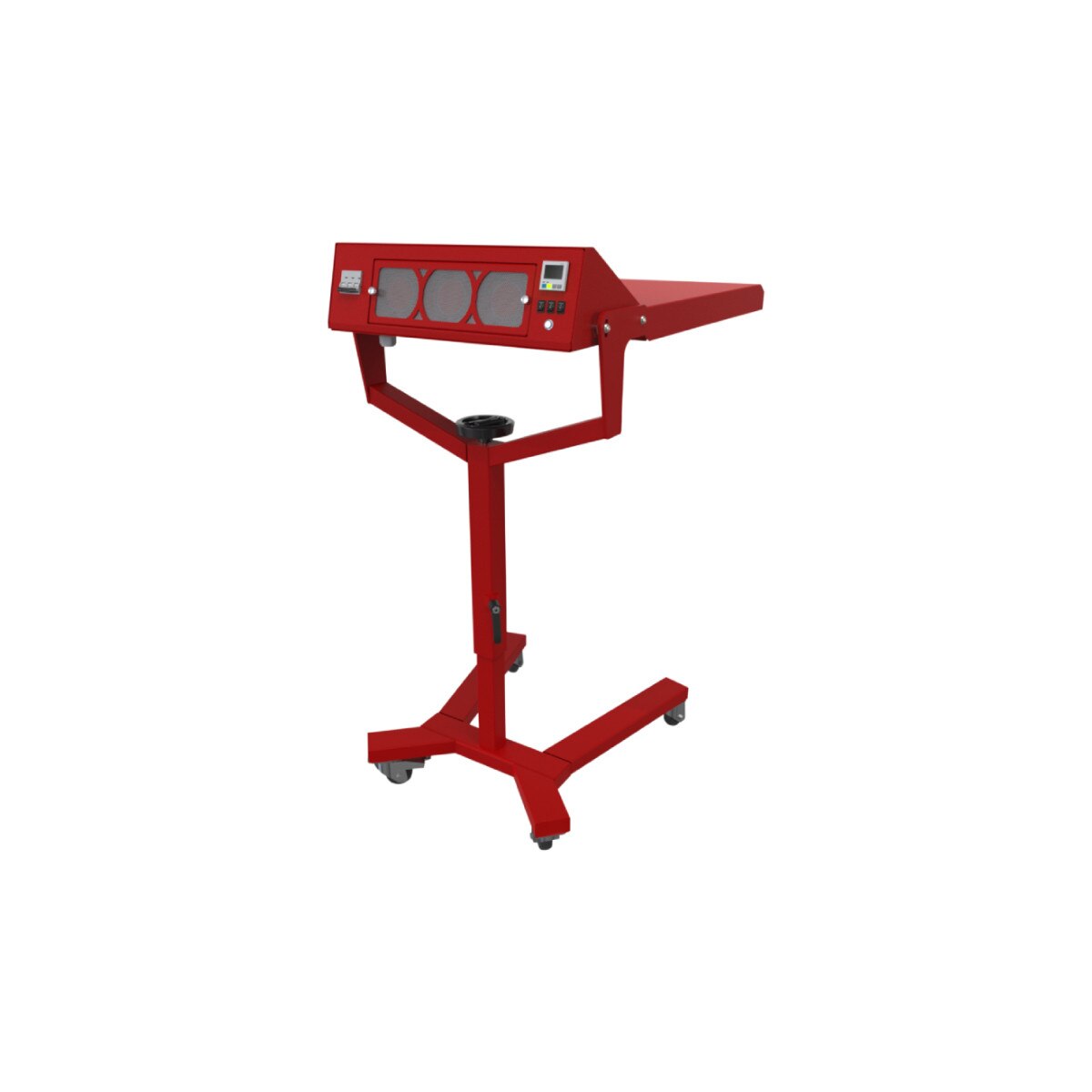

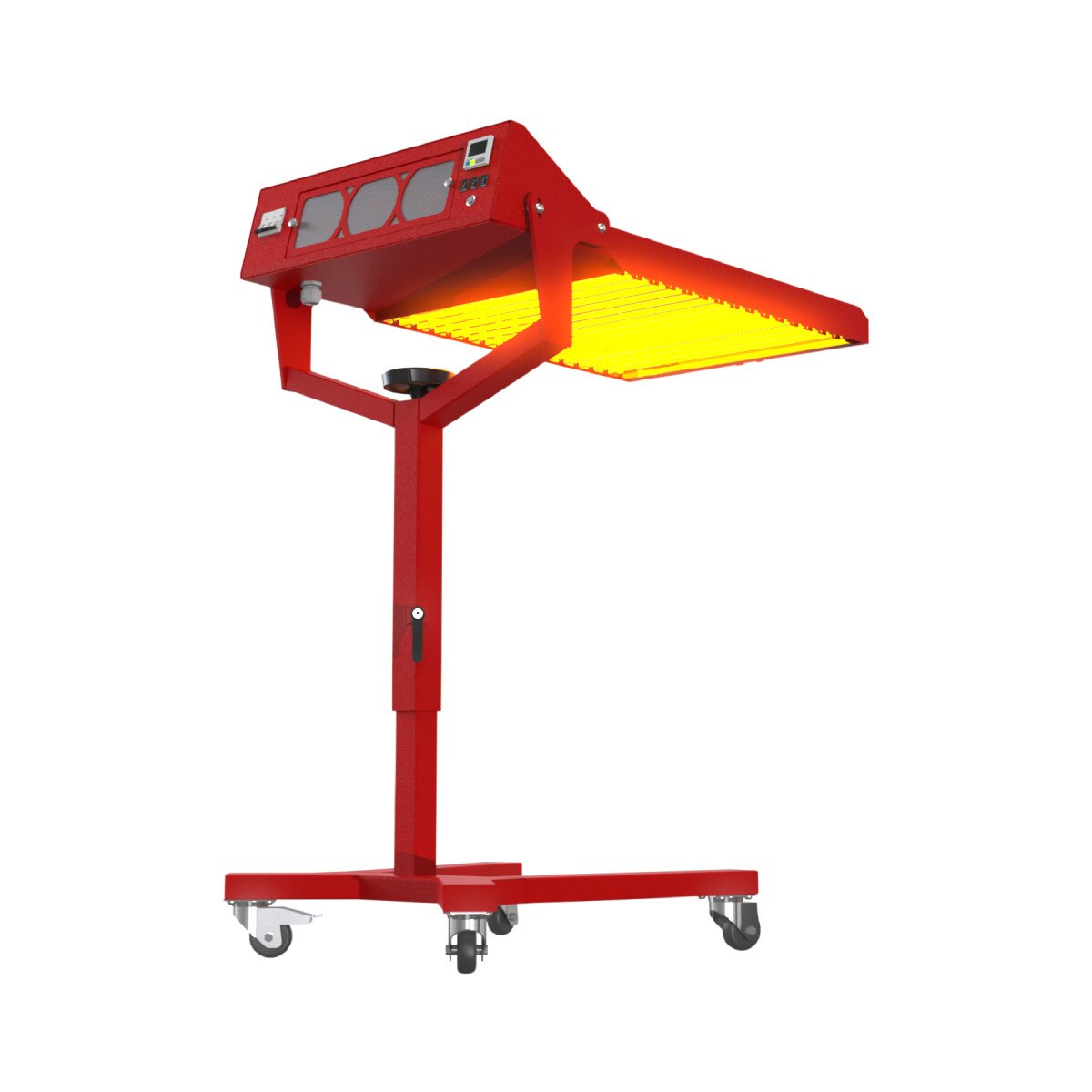

Comet Light Quartz Flash Cure Unit
The speed and efficiency of quartz flash curing in Anatol’s most affordable package.
- Quartz lamps heat up and shut down quickly, saving electricity compared to infrared flashes which are always on
- Two or three curing zones, depending on the size of the flash
- Best suited for work with Anatol’s automatic presses
- Easy-to-use and reliable
- Models available with 16” x 18”, 20” x 24” and 20” x 28” curing areas

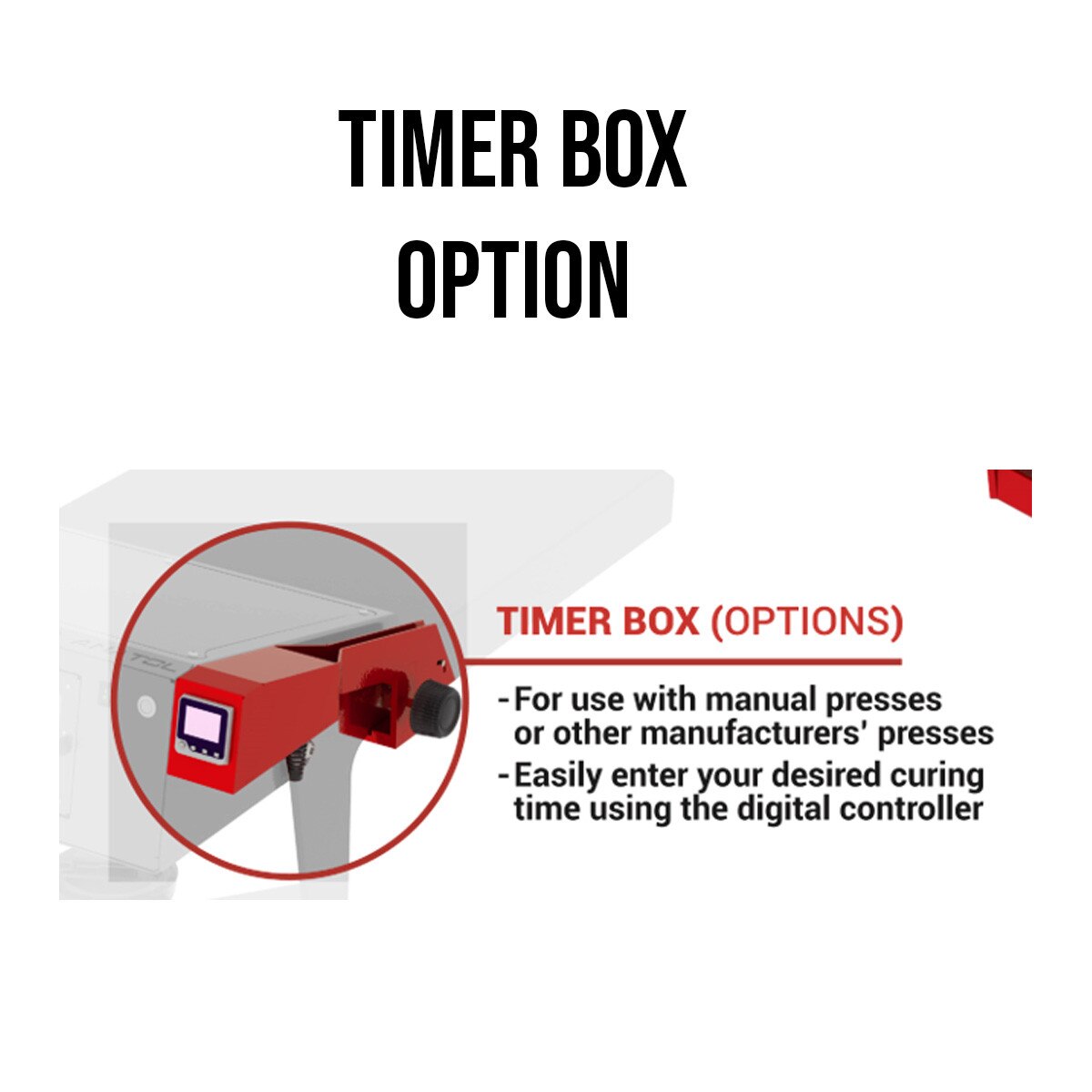

To use the Comet Light flash cure unit with an Anatol manual press or another manufacturer’s automatic/manual press, add the optional Timer Box
Available on a height-adjustable floor stand for use with both Anatol automatic and manual screen printing presses.
SIZE | Number of Curing Zones | Number of Lamps | Electrical Requirements* |
16” x 18” (40.6cm x 45.7cm) | 2 | 9 | 1 Ph, 208-240V, 50/60 Hz, 9kW, 43A 3 phase 208V 25 A |
20” x 24” (50.8cm x 61cm) | 2 | 10 | 1 Ph, 208-240V, 50/60 Hz, 12,5kW, 60A 3 phase 208V 35 A |
20” x 28” (50.8cm x 71.1cm) | 3 | 15 | 1 Ph, 208-240V, 50/60 Hz, 18,75kW, 90A 3 phase 208V 52 A |
SKU
TDS
SDS
Brochure
Manual
ANA-COMET-LIGHT-W
Not Available
Not Available
Not Available
Anatol Comet Brochure
