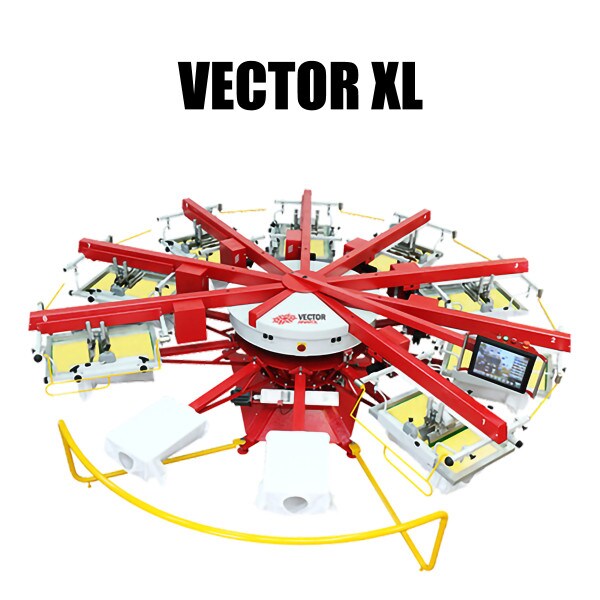

ANATOL VECTOR XL

(0) No Reviews yet
$0.00
SKU: ANA-VECTOR-XL
DISPLAY NAME: ANATOL VECTOR XL
Prices starting at $ 47,925.00

Out of Stock

Details

VECTOR XL


VECTOR Series Automatic Screen Printing Machines


Introducing Anatol’s exclusive SSE configuration!

Vector Automatic Screen Printing machine is a step between a pneumatic-based press and the Anatol VOLT, using electric technology combined with pneumatic-hybrid squeegee/flood bar adjustment. Anatol’s exclusive SSE configuration – servo lift, servo indexing and AC electric print heads – lets you print with maximum consistency and reliability. With reduced air consumption rates to the lowest in the industry, saving you money and the hassle of pneumatic repairs. 90% fewer pneumatic components than competing screen printing presses means the Vector requires less air, less maintenance, less downtime, and less cost to operate.



The all-new Anatol Vector is designed to be the most versatile automatic screen printing machine in the industry. Available in more sizes than any other auto and with all the features you expect from Anatol, the Vector lets you work the way you want – not the way your machine forces you to. The Vector is available in four different print areas up to 20″ x 28″: Vector S, Vector M, Vector L and Vector XL, in models from 2 to 18 colors.



The Vector XL automatic screen printing machine is built with your largest printing challenges in mind. No need to turn away customers with large designs – the Vector XL makes printing images up to 20″ x 28″ fast, easy and reliable. And like all Vector screen printing machines, it’s built to last using less air than any of its competitors, so you don’t have to worry about the headaches of pneumatic repairs or the cost of a large air compressor.



The Vector XL screen printing press is available from 6 to 18 colors and is loaded with the features you need to make your biggest jobs a breeze.

Industrial size and strength.

Print Area: 20” x 28”
Screen printing machine available in configurations of:
8 stations/6 colors up to 20 stations/18 colors



VECTOR Press Automatic Screen Printing Machines main features

Touchscreen Controls

    • 15” touchscreen with Aries 2 operating system
    • Easy operator access to all machine parameters
    • Program multiple heads simultaneously
    • Full speed control of both stroke directions
    • View real-time print count (dozen) and speed (pcs/hr)
    • Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode
    • Set pallet preheat temperature
    • Quickly set the same speed and print distance for all heads

Print Heads

    • AC electric print heads for a stronger, more even stroke
    • Smash button at load/unload stations to prevent printing on empty pallets
    • Adjustable side screen holders with new low-profile for easy access
    • True three-point micro-registration (front-to-back, left-to-right, and rotational movement)

Tool-less Adjustment

    • Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
    • Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8” at increments of 0.01"
    • Squeegee/flood bar knobs with scale for user-friendly depth adjustments
    • Single lever quick-release squeegee and flood bars in print carriage
    • Speed Clamps, one-touch screen locks

Pallets

    • Servo lift and lower for smooth operation
    • Rubber-coated aluminum pallets
    • Tool-less locks for slide or quick release-style pallets
    • Precise four-point pallet leveling system
    • Standard 16” x 22” (18” x 22” on Vector XL) pallets included
    • other sizes available upon request
    • Choice of slide style or quick release pallets

Servo-Indexer

    • Precise control of pallet position +/- .001”
    • Provides smooth indexing with superior print consistency
    • Increase production with pinpoint control of acceleration and deceleration
    • Index direction: right and left
    • Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options

Construction

    • Heavy-duty rolled steel frame supports smooth, high speed production cycles
    • Ball-lead servo with internal lubrication system reduces vibration and maintenance costs
    • Industry’s best safety bars at each print head and load/unload station
    • Carousel safety barrier to prevent operators stepping into press
    • Servo-indexer lasts for decades



Specifications


Stations
Colors
Maximum
Print Area
Maximum
Screen Size
Standard
Pallet Size
Press
Diameter
Stationary Arm
or Boom
Touchscreen Support
Electrical RequirementsAir Requirements @ 90 PSI
08/0620″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
13’10”Boom1 ph 208/230v, 50/60 Hz, 14A
3 ph 208/230v, 50/60 Hz, 9A
0.9 SCFM
25 l/min
08/0720″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
13’10”Boom1 ph 208/230v, 50/60Hz, 15A
3 ph 208/230v, 50/60 Hz, 10A
1.1 SCFM
30 l/min
10/0820″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
15’Boom1 ph 208/230v, 50/60 Hz, 16A
3 ph 208/230v, 50/60 Hz, 11A
1.2 SCFM
34 l/min
10/0920″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
15’Boom1 ph 208/230v, 50/60 Hz, 17A
3 ph 208/230v, 50/60 Hz, 12A
1.3 SCFM
38 l/min
12/1020″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
16’6”Boom1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 13A
1.5 SCFM
42 l/min
12/1120″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
16’6”Boom1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 14A
1.6 SCFM
46 l/min
14/1220″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
18’Stationary Arm1ph 208/230v, 50/60 Hz, 25A
3 ph 208/230v, 50/60 Hz, 16A
1.8 SCFM
50 l/min
16/1420″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
19’6”Stationary Arm3 ph 208/230v, 50/60 Hz, 27A1.9 SCFM
54 l/min
18/1620″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
20’10”Stationary Arm3 ph 208/230v, 50/60 Hz, 30A2.0 SCFM
58 l/min
20/1820″ x 28″
50.8cm x 71cm
26″ x 43″
66cm x 109.2cm
16″ x 22″
41cm x 56cm
22’8”Stationary Arm3 ph 208/230v, 50/60 Hz, 32A2.2 SCFM
63 l/min
