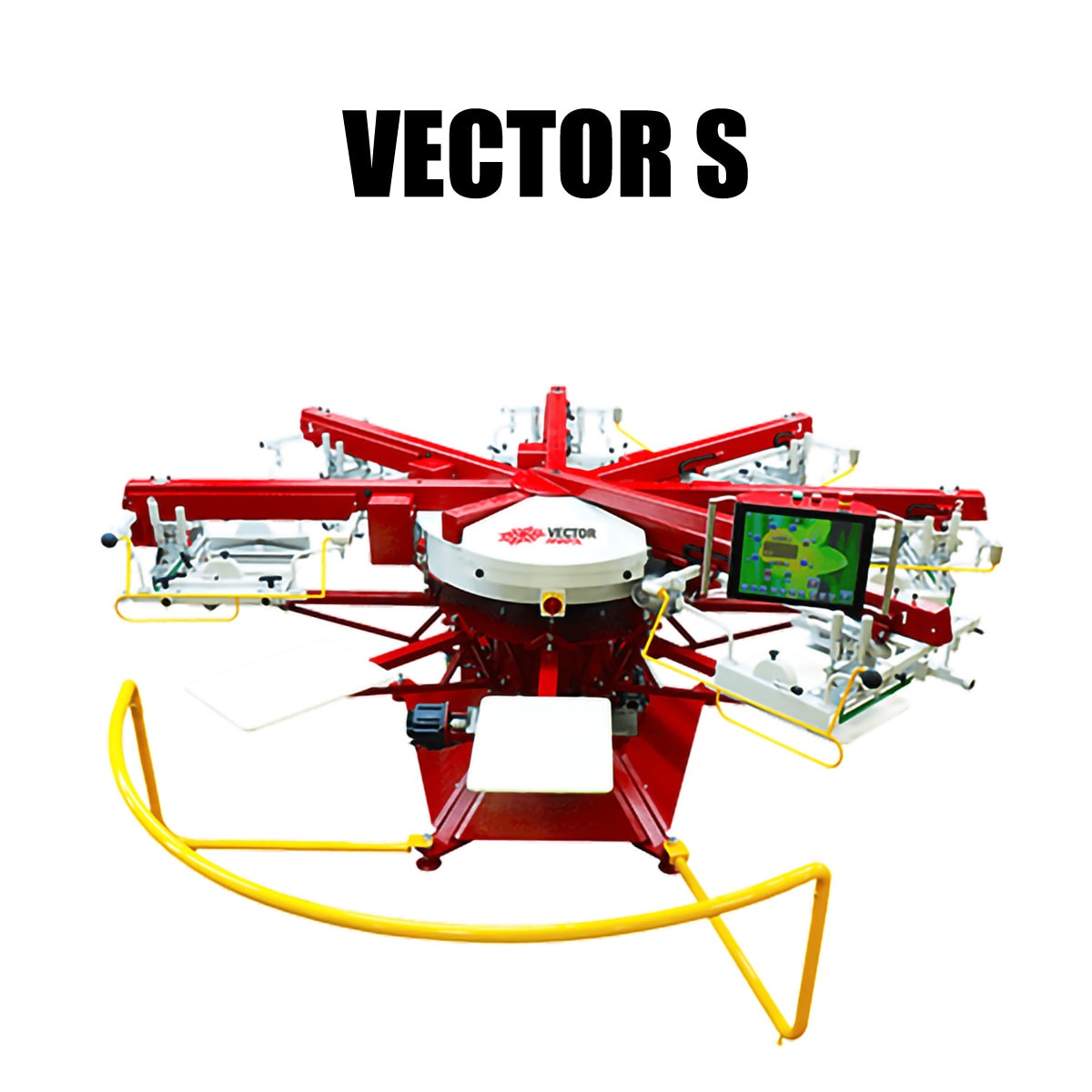

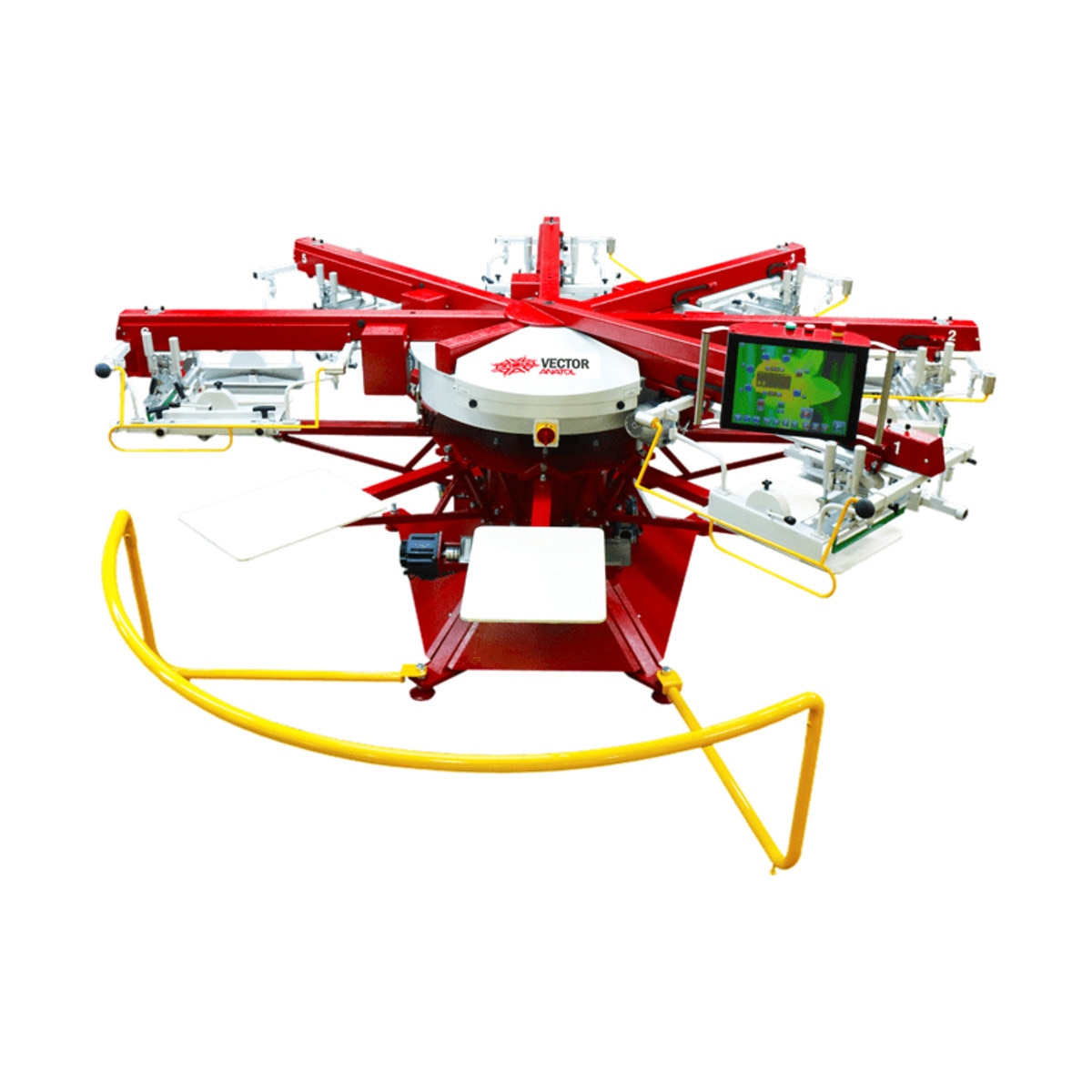

VECTOR S

VECTOR Series Automatic Screen Printing Machines


Introducing Anatol’s exclusive SSE configuration!


Vector Automatic Screen Printing machine is a step between a pneumatic-based press and the Anatol VOLT, using electric technology combined with pneumatic-hybrid squeegee/flood bar adjustment. Anatol’s exclusive SSE configuration – servo lift, servo indexing and AC electric print heads – lets you print with maximum consistency and reliability. With reduced air consumption rates to the lowest in the industry, saving you money and the hassle of pneumatic repairs. 90% fewer pneumatic components than competing screen printing presses means the Vector requires less air, less maintenance, less downtime, and less cost to operate.



The all-new Anatol Vector is designed to be the most versatile automatic screen printing machine in the industry. Available in more sizes than any other auto and with all the features you expect from Anatol, the Vector lets you work the way you want – not the way your machine forces you to. The Vector is available in four different print areas up to 20″ x 28″: Vector S, Vector M, Vector L and Vector XL, in models from 2 to 18 colors.


The Vector S screen printing machine is designed for shops looking to take advantage of electric printing technology and minimize reliance on air. Looking to move to an automatic screen printing press but worried about maintenance and operating costs? With air components reduced by over 90% compared to competing presses, the Vector will save you money and downtime. Servo indexing, servo lift and electric print heads give you maximum consistency, reliability, and efficiency. A 15″ x 16″ print area and 21″ x 28″ maximum screen size will let you tackle most printing challenges



The Vector S screen printing machine is available in configurations that will meet your demands if you’re a growth shop ready to take on large print projects.


Electric technology in a compact package.

Print Area: 15” x 16”
Screen printing machine available in configurations of:
6 stations/2 colors up to 12 stations/11 colors



VECTOR Press Automatic Screen Printing Machines main features

Touchscreen Controls

  • 15” touchscreen with Aries 2 operating system
  • Easy operator access to all machine parameters
  • Program multiple heads simultaneously
  • Full speed control of both stroke directions
  • View real-time print count (dozen) and speed (pcs/hr)
  • Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode
  • Set pallet preheat temperature
  • Quickly set the same speed and print distance for all heads

Print Heads

  • AC electric print heads for a stronger, more even stroke
  • Smash button at load/unload stations to prevent printing on empty pallets
  • Adjustable side screen holders with new low-profile for easy access
  • True three-point micro-registration (front-to-back, left-to-right, and rotational movement)

Tool-less Adjustment

  • Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
  • Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8” at increments of 0.01"
  • Squeegee/flood bar knobs with scale for user-friendly depth adjustments
  • Single lever quick-release squeegee and flood bars in print carriage
  • Speed Clamps, one-touch screen locks

Pallets

  • Servo lift and lower for smooth operation
  • Rubber-coated aluminum pallets
  • Tool-less locks for slide or quick release-style pallets
  • Precise four-point pallet leveling system
  • Standard 16” x 22” (18” x 22” on Vector XL) pallets included
  • other sizes available upon request
  • Choice of slide style or quick release pallets

Servo-Indexer

  • Precise control of pallet position +/- .001”
  • Provides smooth indexing with superior print consistency
  • Increase production with pinpoint control of acceleration and deceleration
  • Index direction: right and left
  • Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options

Construction

  • Heavy-duty rolled steel frame supports smooth, high speed production cycles
  • Ball-lead servo with internal lubrication system reduces vibration and maintenance costs
  • Industry’s best safety bars at each print head and load/unload station
  • Carousel safety barrier to prevent operators stepping into press
  • Servo-indexer lasts for decades



Specifications



Stations
Colors
Maximum
Print Area
Maximum
Screen Size
Standard
Pallet Size
Press
Diameter
Touchscreen SupportElectrical RequirementsAir Requirements @ 90 PSI
06/0215″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’4”Boom1 ph 208/230v, 50/60 Hz, 11A
3 ph 208/230v, 50/60 Hz, 7A
0.3 SCFM
8.5 l/min
06/0315″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’4”Boom1 ph 208/230v, 50/60 Hz, 12A
3 ph 208/230v, 50/60 Hz, 8A
0.5 SCFM
13 l/min
06/0415″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’4”Boom1 ph 208/230v, 50/60 Hz, 13A
3 ph 208/230v, 50/60 Hz, 8A
0.6 SCFM
17 l/min
06/0515″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’4”Boom1 ph 208/230v, 50/60 Hz, 14A
3 ph 208/230v, 50/60 Hz, 9A
0.7 SCFM
21 l/min
08/0615″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
10’2″Boom1 ph 208/230v, 50/60 Hz, 14A
3 ph 208/230v, 50/60 Hz, 9A
0.9 SCFM
25 l/min
08/0715″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
10’2″Boom1 ph 208/230v, 50/60 Hz, 15A
3 ph 208/230v, 50/60 Hz, 10A
1.1 SCFM
30 l/min
10/0815″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
11’2″Boom1 ph 208/230v, 50/60 Hz, 16A
3 ph 208/230v, 50/60 Hz, 11A
1.2 SCFM
34 l/min
10/0915″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
11’2″Boom1 ph 208/230v, 50/60 Hz, 17A
3 ph 208/230v, 50/60 Hz, 12A
1.3 SCFM
38 l/min
12/1015″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
12’4″Boom1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 13A
1.3 SCFM
38 l/min
12/1115″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
12’4″Boom1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 14A
1.3 SCFM
38 l/min
