ANATOL VECTOR M
Details

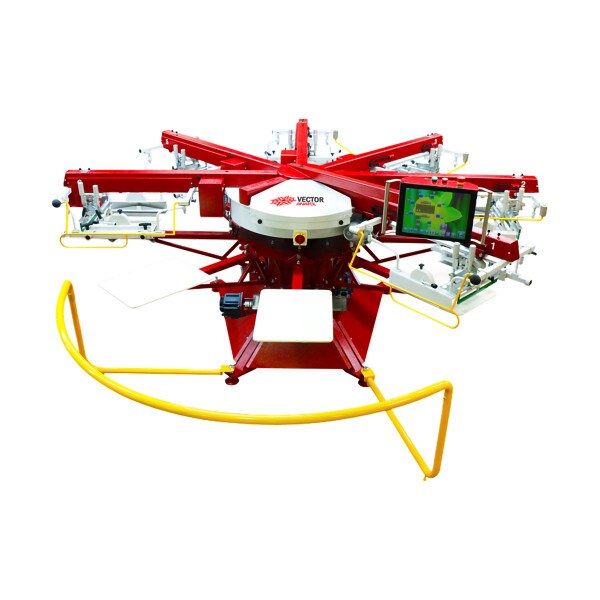

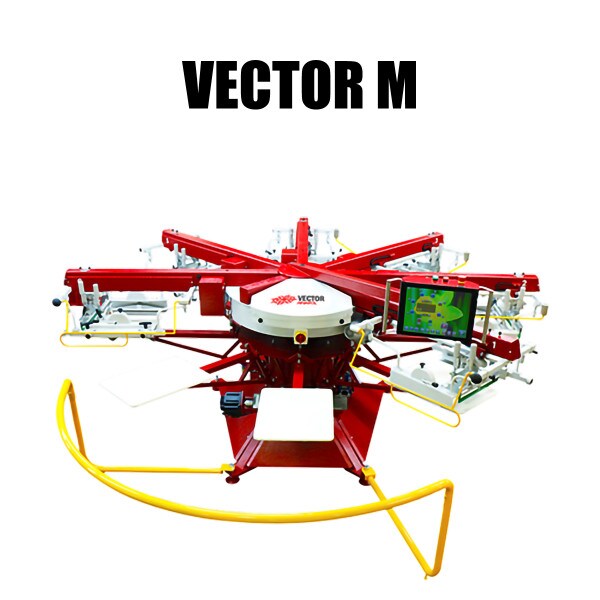

VECTOR M
VECTOR Series Automatic Screen Printing Machines
Introducing Anatol’s exclusive SSE configuration!
Vector Automatic Screen Printing machine is a step between a pneumatic-based press and the Anatol VOLT, using electric technology combined with pneumatic-hybrid squeegee/flood bar adjustment. Anatol’s exclusive SSE configuration – servo lift, servo indexing and AC electric print heads – lets you print with maximum consistency and reliability. With reduced air consumption rates to the lowest in the industry, saving you money and the hassle of pneumatic repairs. 90% fewer pneumatic components than competing screen printing presses means the Vector requires less air, less maintenance, less downtime, and less cost to operate.
The all-new Anatol Vector is designed to be the most versatile automatic screen printing machine in the industry. Available in more sizes than any other auto and with all the features you expect from Anatol, the Vector lets you work the way you want – not the way your machine forces you to. The Vector is available in four different print areas up to 20″ x 28″: Vector S, Vector M, Vector L and Vector XL, in models from 2 to 18 colors.
Built for maximum versatility, the Vector M screen printing machine is perfect for screen printing shops of all sizes looking to boost performance and production. Available in configurations from 2 to 12 colors and with a print area of 16″ x 18″, the Vector M automatic screen printing press will meet the demands of almost any printing job. And with minimum pneumatic requirements, it requires less routine maintenance and a smaller air compressor than any press in its class – ultimately saving you thousands.
If you’re looking for a powerful screen printing machine with a compact footprint and state-of-the-art features, the Vector M is the perfect fit.
Discover the benefits of electric printing technology in an affordable package.
Print Area: 16” x 18”
Screen printing machine available in configurations of:
6 stations/2 colors up to 14 stations/12 colors
VECTOR Press Automatic Screen Printing Machines main features
Touchscreen Controls
- 15” touchscreen with Aries 2 operating system
- Easy operator access to all machine parameters
- Program multiple heads simultaneously
- Full speed control of both stroke directions
- View real-time print count (dozen) and speed (pcs/hr)
- Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode
- Set pallet preheat temperature
- Quickly set the same speed and print distance for all heads
Print Heads
- AC electric print heads for a stronger, more even stroke
- Smash button at load/unload stations to prevent printing on empty pallets
- Adjustable side screen holders with new low-profile for easy access
- True three-point micro-registration (front-to-back, left-to-right, and rotational movement)
Tool-less Adjustment
- Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
- Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8” at increments of 0.01"
- Squeegee/flood bar knobs with scale for user-friendly depth adjustments
- Single lever quick-release squeegee and flood bars in print carriage
- Speed Clamps, one-touch screen locks
Pallets
- Servo lift and lower for smooth operation
- Rubber-coated aluminum pallets
- Tool-less locks for slide or quick release-style pallets
- Precise four-point pallet leveling system
- Standard 16” x 22” (18” x 22” on Vector XL) pallets included
- other sizes available upon request
- Choice of slide style or quick release pallets
Servo-Indexer
- Precise control of pallet position +/- .001”
- Provides smooth indexing with superior print consistency
- Increase production with pinpoint control of acceleration and deceleration
- Index direction: right and left
- Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options
Construction
- Heavy-duty rolled steel frame supports smooth, high speed production cycles
- Ball-lead servo with internal lubrication system reduces vibration and maintenance costs
- Industry’s best safety bars at each print head and load/unload station
- Carousel safety barrier to prevent operators stepping into press
- Servo-indexer lasts for decades
Specifications
Stations Colors | Maximum Print Area | Maximum Screen Size | Standard Pallet Size | Press Diameter | Stationary Arm or Boom Touchscreen Support | Electrical Requirements | Air Requirements @ 90 PSI |
---|---|---|---|---|---|---|---|
06/02 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 11A 3 ph 208/230v, 50/60 Hz, 7A | 0.3 SCFM 8.5 l/min |
06/03 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 12A 3 ph 208/230v, 50/60 Hz, 8A | 0.5 SCFM 13 l/min |
06/04 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 13A 3 ph 208/230v, 50/60 Hz, 8A | 0.6 SCFM 17 l/min |
06/05 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A | 0.7 SCFM 21 l/min |
08/06 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 10’11” | Boom | 1 ph 208/230v, 50/60 Hz, 14A 3 ph 208/230v, 50/60 Hz, 9A | 0.9 SCFM 25 l/min |
08/07 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 10’11” | Boom | 1 ph 208/230v, 50/60 Hz, 15A 3 ph 208/230v, 50/60 Hz, 10A | 1.1 SCFM 30 l/min |
10/08 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 12’3″ | Boom | 1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 11A | 1.2 SCFM 34 l/min |
10/09 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 12’3″ | Boom | 1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 12A | 1.3 SCFM 38 l/min |
12/10 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 13’6” | Boom | 1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 13A | 1.5 SCFM 42 l/min |
12/11 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 13’6” | Boom | 1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 14A | 1.6 SCFM 46 l/min |
14/12 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 15’7″ | Boom | 1ph 208/230v, 50/60 Hz, 25A 3 ph 208/230v, 50/60 Hz, 16A | 1.8 SCFM 50 l/min |
