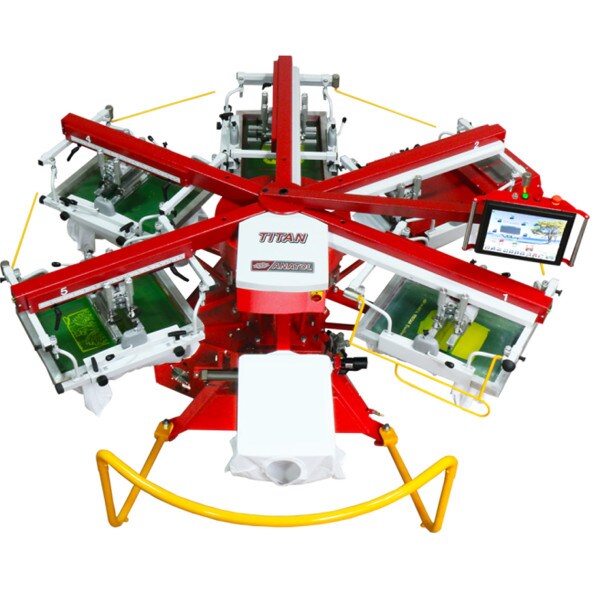

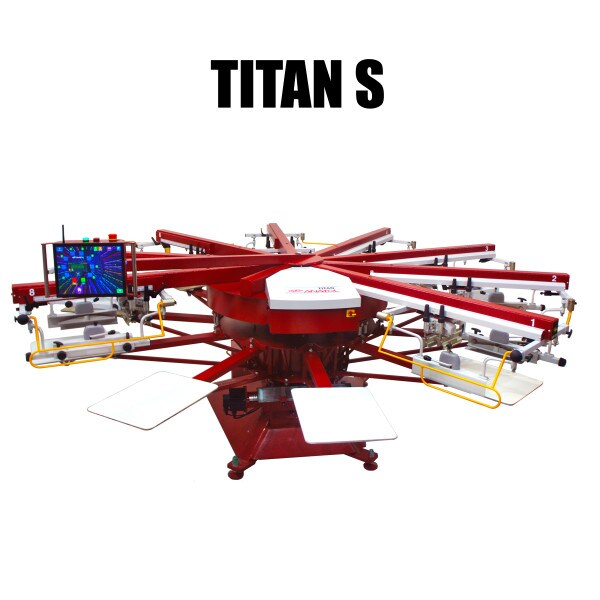

TITAN S


Automatic TITAN Series — Small but Mighty, with Big Time Features

Efficient Innovation

Save thousands in maintenance fees and time lost with the Titan AAA and ASA screen printing presses. These presses use just two (2) cylinders per head. We eliminated 4 screen lock cylinders, 4 squeegee/flood bar cylinders and 4 squeegee/flood bar lock-in carriage cylinders per head. Less efficient pneumatic presses utilize 10-12 cylinders per head.


You’ll use a smaller compressor which means less operating costs and the ability to run a “greener” screen printing shop.


Exclusive air-less Speed Clamps ensure a uniform hold on any frame type or thickness, saving you from the waste of melted screen clamp air hoses or leaky toggle switches.


Looking to remove air from your screen printing operation completely? Check out the VOLT Series professional-grade all-electric automatic screen printing machines.


Advanced Technology You Will Only Get on a Titan Entry Level Screen Printing Machine


The Anatol Titan ASA and ASE screen printing machines have a high-quality linear screw style servo indexer sometimes used in the industry on high-end models. Industry standard for entry level automatic presses is often crank arm/gear drive style or electric motor. The superior gauged click cylinder for central off-contact control adjusts in increments of .005″ up to 2/5 inch, resulting in 80 off-contact settings – well above industry standard.



With a smaller footprint and larger number of configurations, the Titan S screen printing machine is the most reliable, cost-effective and innovative option for screen printers looking to move to an automatic. That said, don’t take it off your list if you’re a larger shop that needs a smaller automatic screen printing press to expand production capacity and maximize profit…because the Titan S will take care of your needs.


When moving to an automatic, what you want most is flexibility. If you’re still finding your place in the screen printing industry, the machine with the most flexibility, least amount of air consumption, least amount of parts to break down and most competitively priced entry level option is definitely the Titan S screen printing machine.

The Titan S ASA and ASE automatic screen printing machines offer screen printers that are new to automatics the advanced features you only find on top of the line presses with competitive machines, like servo lift and indexing, electric print heads, digital off-contact and a 15” touchscreen on a flexible boom that can be turned to face any station. That Aries 2 touchscreen technology is what you get with our top-of-the-line VOLT.


Maximum print area of 16” x 18” (41cm x 46cm)
Available in configurations of:
6 stations/2 colors up to 12 stations/11 colors


Control Panel

·       Aries 2 OS: same industry-leading intuitive operating system that is on our high-end VOLT

·       15” touchscreen with one-touch access to all job settings and functions for accelerated set-ups

·       Easy access to each print head with our swivel boom arm

·       Quick access to the operator’s manual

·       Save parameters of a stored job: print area, flash cure time and temperature, color design, mode

·       Set pallet preheat temperature

Print Heads

·       Offered with either pneumatically-driven or electric print heads

·       Independent flood/print speed control

·       Both front and rear stroke adjustments

·       Single-handed squeegee/flood bar adjustment with a range of 0°- 30°

·       Gauged squeegee/flood bar knobs provide easy depth adjustments

·       Step-Back, Multi Step-Back & Cycle Mode programming standard with servo indexing models, available in configurations of 2-9 colors.

Pallets

·       Slide-style or quick release pallets

·       Tool-free locking

·       Precise four-point pallet leveling system

·       Standard 16” x 22” solid aluminum, low profile rubber-coated pallets

Servo-Indexer

·       AAA models have pneumatic indexers with clockwise direction only

·       Servo indexer allows for clockwise, counterclockwise and half indexing on ASA and ASE models

Registration

·       True three-point micro-registration of the screen (front-back, left-right and rotational movement) allowing for precise and quick adjustments

·       Accepts most common pre-registration systems available on the market, including Anatol's ARME registration system

Skip Shirt & Smash Button

·       Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel

·       Halt printing in the event of an improperly loaded shirt with our Smash button

Central Off-Contact

·       Gauged click mechanism allows for precise adjustments up to 2/5 inch with 68 off-contact settings, well above industry standard for maximum control when printing on various substrates or using specialty inks

·       Most advanced mechanical central off-contact on the market

Safety Systems

·       Ensure safety during press set-up and operation with our patented safety bars located between each print head and on each side of the load and unload station

Options

·       Rapid Wave Quartz Flash Cure

·       Infrared Flash Cure

·       Pallet locator for slide-style mounting pallets

·       Foot pedal control for manual cycle

·       Your choice of side or front/rear screen clamps


Specifications

 AAAASAASE
ModelAir Requirement
@ 90 PSI
Power RequirementDiameterAir Requirement
@ 90 PSI
Power RequirementDiameterAir Requirement
@ 90 PSI
Power RequirementDiameter
6/2 S6.5 SCFM
(183 l/min)
1ph, 115
VAC, 2A
9’4”4.7 SCFM
(133 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’4”1.8 SCFM
(50 l/min)
1ph, 208 VAC, 7A
3ph, 208 VAC, 5A
9’4”
6/3 S8.1 SCFM
(228 l/min)
1ph, 115
VAC, 2A
9’4”6.3 SCFM
(178 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’4”1.9 SCFM
(54 l/min)
1ph, 208 VAC, 8A
3ph, 208 VAC, 5A
9’4”
6/4 S9.7 SCFM
(274 l/min)
1ph, 115
VAC, 2A
9’4”7.9 SCFM
(223 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’4”2.0 SCFM
(58 l/min)
1ph, 208 VAC, 10A
3ph, 208 VAC, 6A
9’4”
6/5 S11.3 SCFM
(319 l/min)
1ph, 115
VAC, 2A
9’4”9.5 SCFM
(268 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’4”2.2 SCFM
(62 l/min)
1ph, 208 VAC, 11A
3ph, 208 VAC, 6A
9’4”
8/6 S12.9 SCFM
(365 l/min)
1ph, 115
VAC, 2A
10’2”11.1 SCFM
(314 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’2”2.4 SCFM
(68 l/min)
1ph, 208 VAC, 11A
3ph, 208 VAC, 7A
10’2”
8/7 S14.5 SCFM
(410 l/min)
1ph, 115
VAC, 2A
10’2”12.7 SCFM
(359 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’2”2.5 SCFM
(72 l/min)
1ph, 208 VAC, 12A
3ph, 208 VAC, 7A
10’2”
10/8 S   14.3 SCFM
(404 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
11’1”2.7 SCFM
(76 l/min)
1ph, 208 VAC, 14A
3ph, 208 VAC, 9A
11’3”
10/9 S   15.9 SCFM
(449 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
11’1”2.8 SCFM
(80 l/min)
1ph, 208 VAC, 14A
3ph, 208 VAC, 9A
11’3”
12/10 S   17.5 SCFM
(495 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
12’3”3.0 SCFM
(85 l/min)
1ph, 208 VAC, 16A
3ph, 208 VAC, 11A
12’3”
12/11 S   19.1 SCFM
(540 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
12’3”3.1 SCFM
(87 l/min)
1ph, 208 VAC, 16A
3ph, 208 VAC, 11A
12’3”
AAA=air lift, air index, air heads ASA=air lift, servo index, air heads ASE=air lift, servo index, electric head
