ANATOL THUNDER
Details

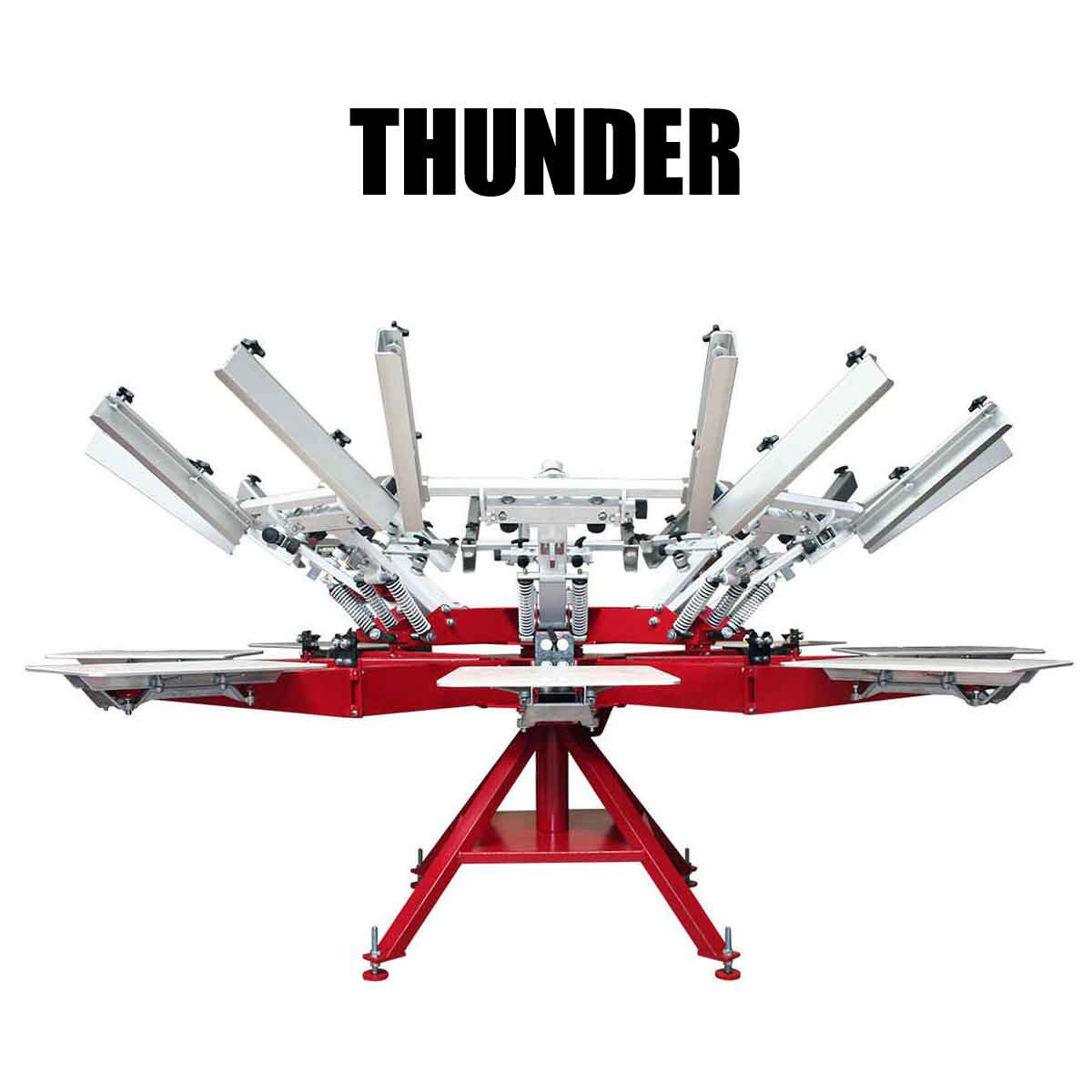

THUNDER
Manual Screen Printing Press
Available in configurations of 4 stations/4 colors – 12 stations/12 colors
Maximum Screen Size 26″ x 36″
Maximum Print Area 21″ x 28″

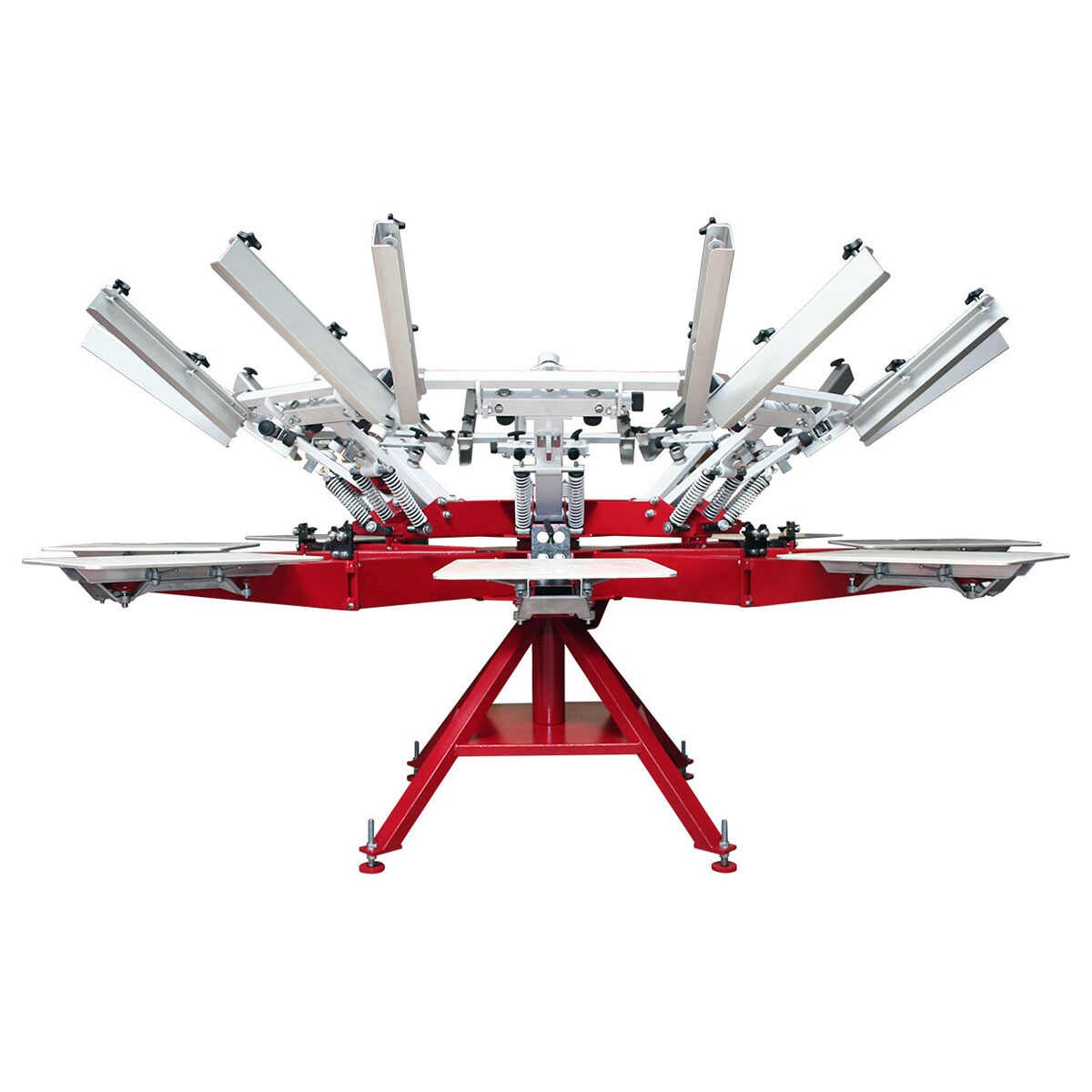

The Thunder is an industrial-grade manual screen printing press designed to handle high-demand printing while minimizing wear and tear on the user. The most durable manual screen printing machine on the market, the Thunder is an excellent addition as a sampling or production press. It has the same pallet arm and carousel design as the Anatol automatic t-shirt screen printing machines. The dual bearing system provides easy movement throughout the day. The Thunder is available with possible configurations of 4 Station/4 Colors, 4 Station/6 Colors, 6 Station/6 Colors, 4 Station/8 Colors, 8 Station/8 Colors, 10 Station/10 Colors and 12 Station/12 Colors.
Print Heads
· Gauged three-point micro-registration movement is adjustable on three points (front to back, side to side and rotational)

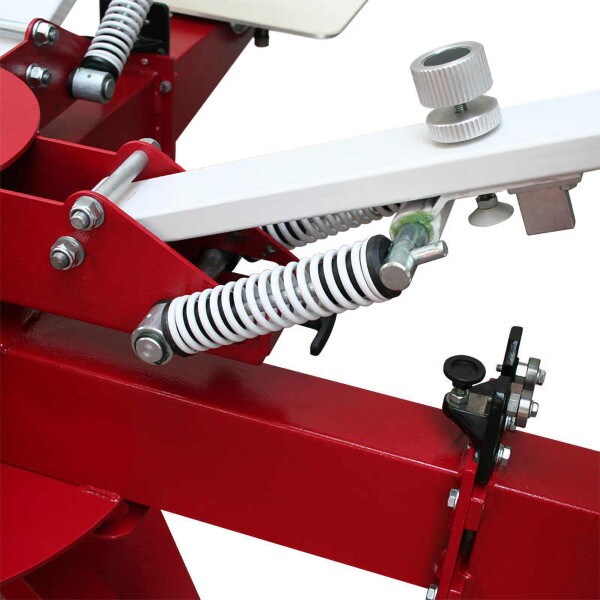

· Dual adjustable, guided spring tensioning system that provides a smooth lift and lower
· Side screen clamps keep screens in registration
· Off-contact and screen pitch adjustments on each print head
· All-Heads Down (on models 4s/4c, 6s/6c and 8s/8c) design lets you print any color from any print head
Tool-less Adjustment
· 100% tool-less setups and operation
Pallets
· 16" x 22" rubber-coated aluminum pallets included
· Choice of quick release or slide style pallets
· Mix and match side or back clamps at no additional charge
· Four-point pallet leveling system
· Adjustable side screen clamps
· Swivel feet on screen clamps to prevent movement while tightening
· Laser alignment system for quick and easy apparel alignment
Construction
· Double-bearing registration locks ensure top print quality with multi-color jobs
· Heavy-duty steel frame
· Upper and lower column bearings for smooth, quick operation
· Sturdy solid aluminum pallets
· Ergonomically designed for ease of use
· Small footprint accommodates tight spaces

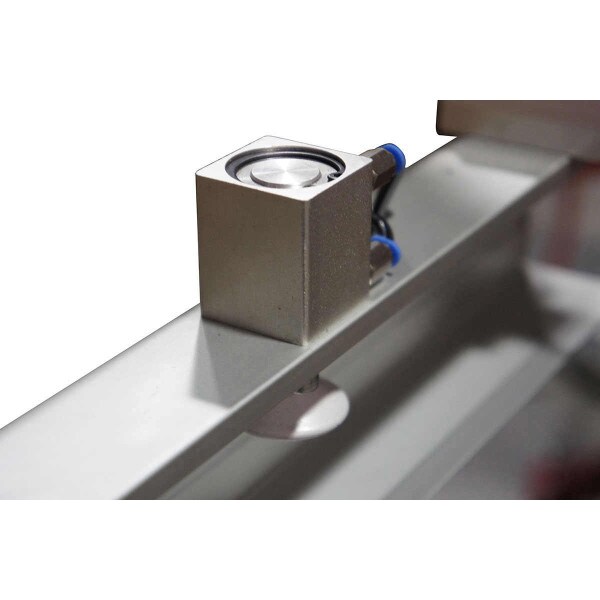

- Air screen clamps - Secure the pallet instantly with the flick of switch to ensure exact registration alignment. (Requires air compressor.)
- Thunder 4 stations/4 colors
- Thunder 4 stations/6 colors
- Thunder 6 stations/6 colors
- Thunder 4 stations/8 colors
- Thunder 8 stations/8 colors
- Thunder 10 stations/10 colors
- Thunder 12 stations/12 colors
- Custom configurations available upon request
Specifications
Colors/Stations | Diameter | Max Screen Size | Max Print Size | Standard Pallet Size |
---|---|---|---|---|
4/4 | 9’6″ (290 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 cm |
6/4 | 9’6″ (290 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 cm |
6/6 | 9’6″ (290 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 cm |
8/4 | 10’10” (330 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 cm |
8/8 | 10’10” (330 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 cm |
10/10 | 13’9″ (419 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 cm |
12/12 | 15’2″ (462 cm) with screens in | 26″ x 36″ 66 cm x 91 cm | 21″ x 28″ 53 cm x 71 cm | 16″ x 22″ 41 cm x 56 c |
