ANATOL PRODIGY

(0) No Reviews yet
$0.00
SKU: ANA-PRODIGY
DISPLAY NAME: ANATOL PRODIGY
Prices starting at $ 24,000.00

Out of Stock

Details

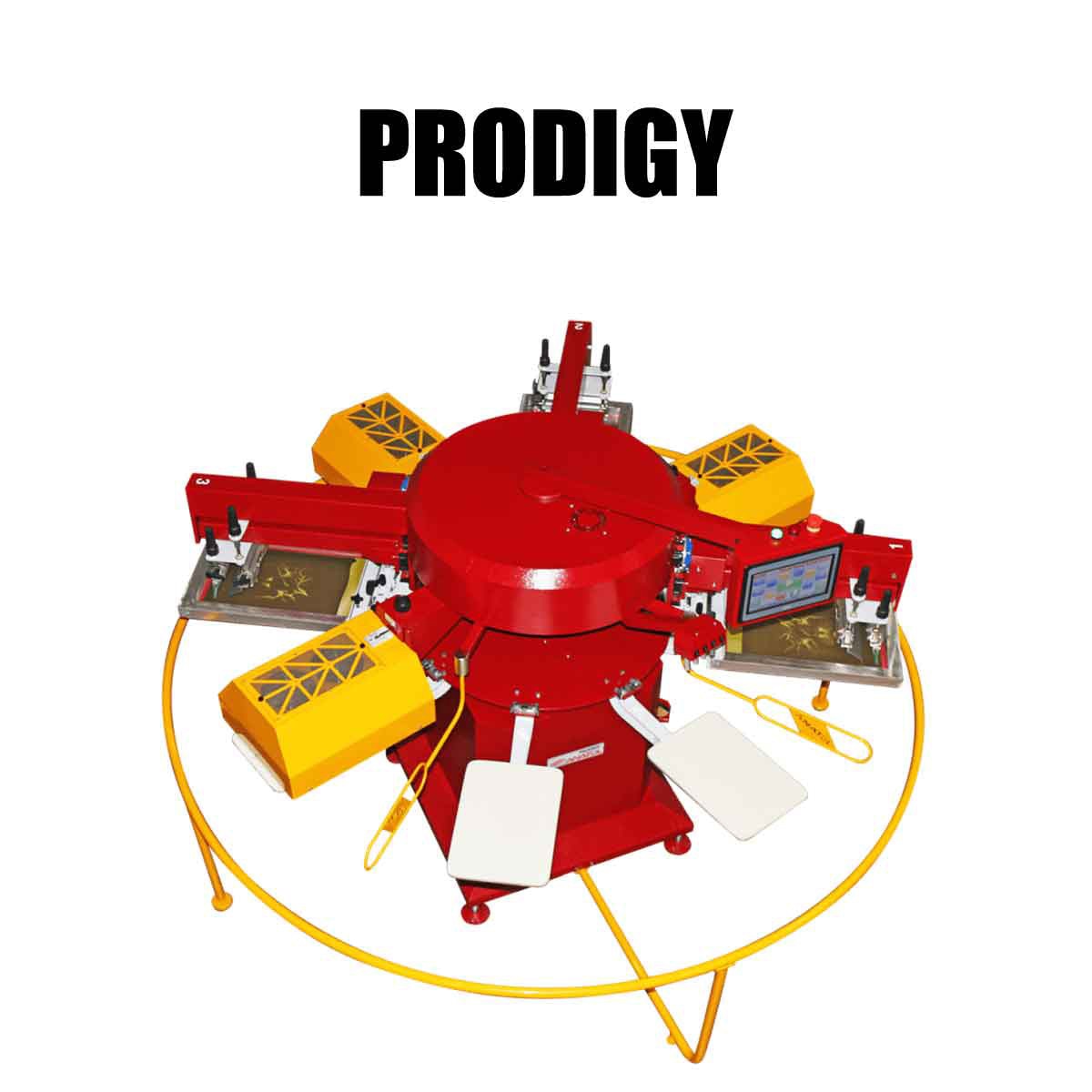

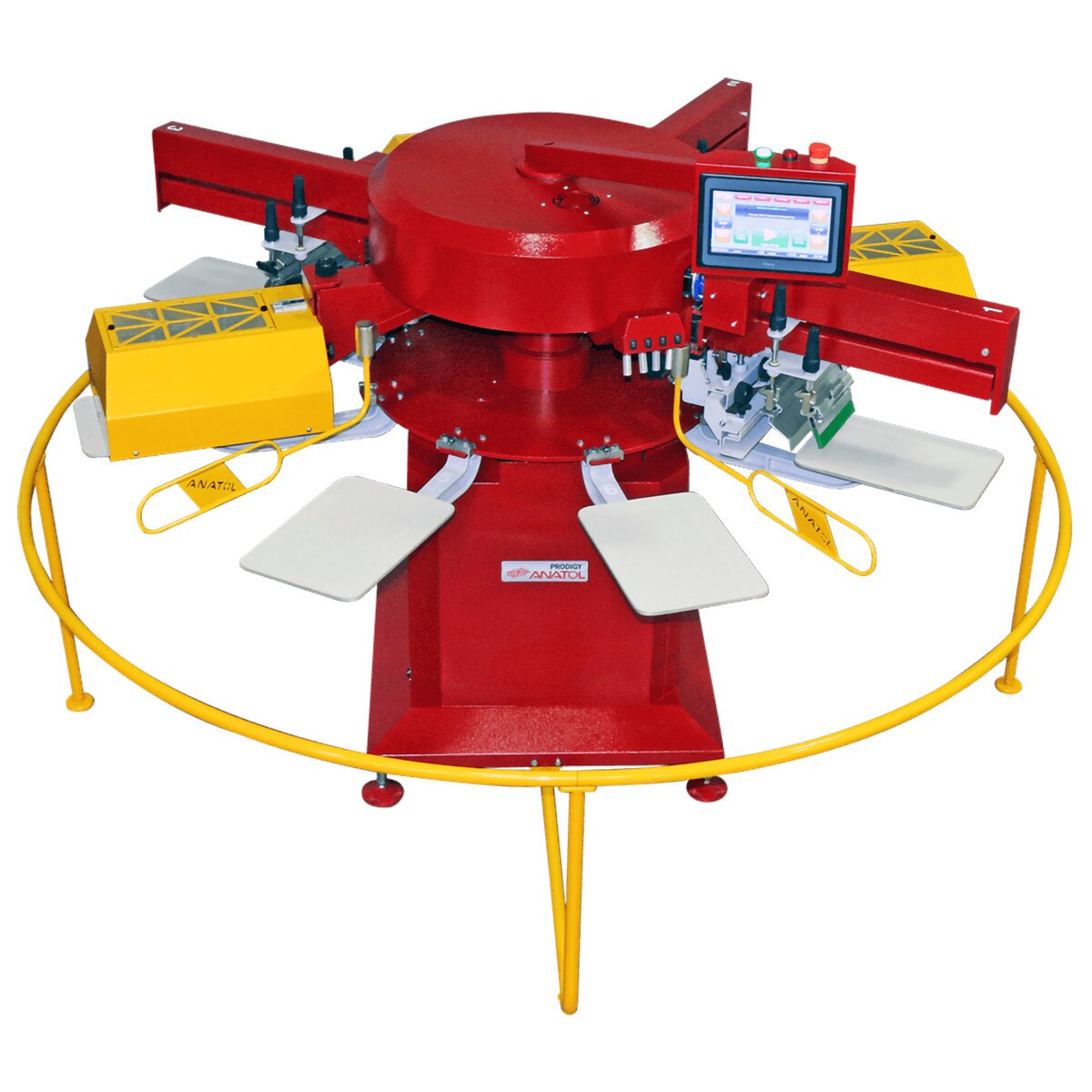

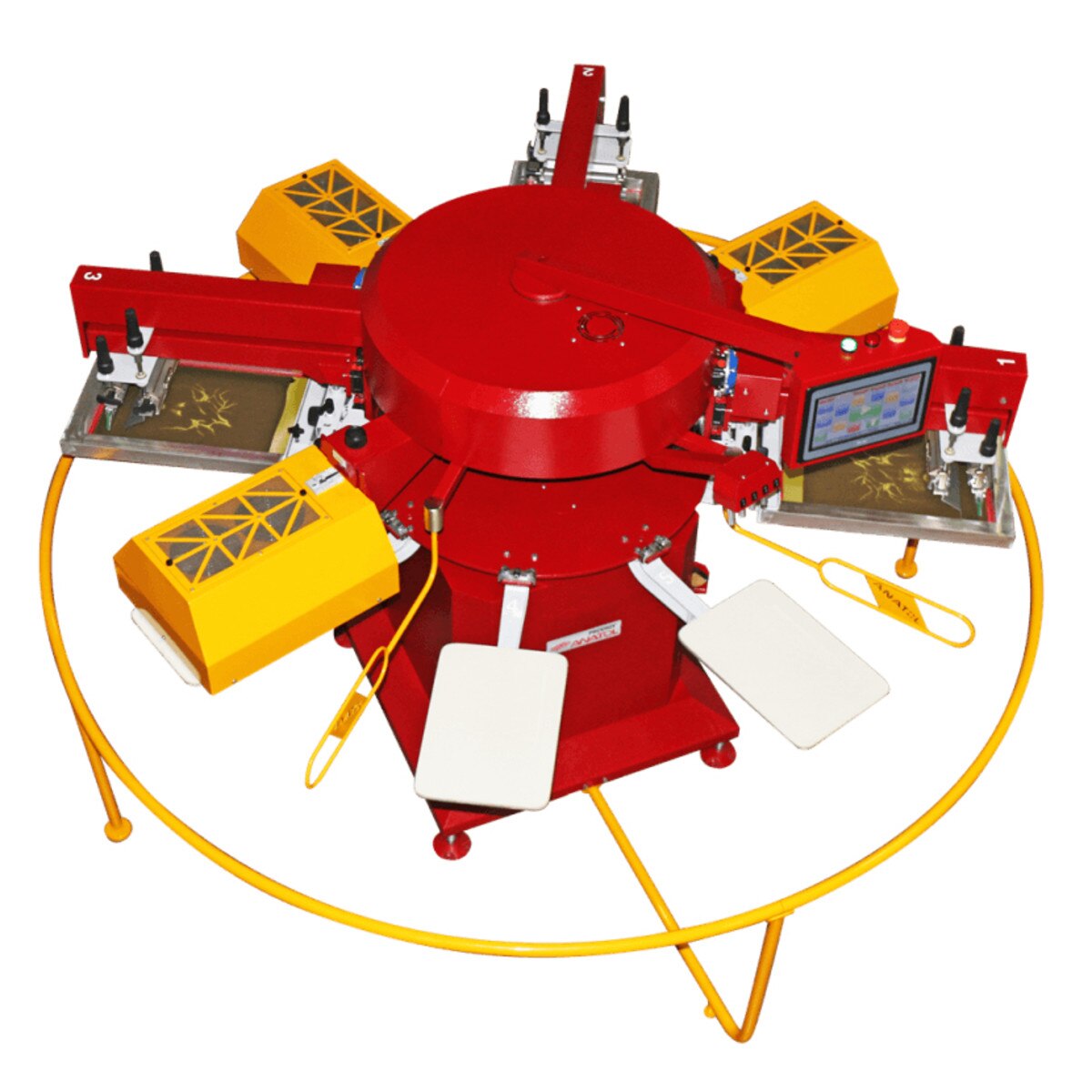

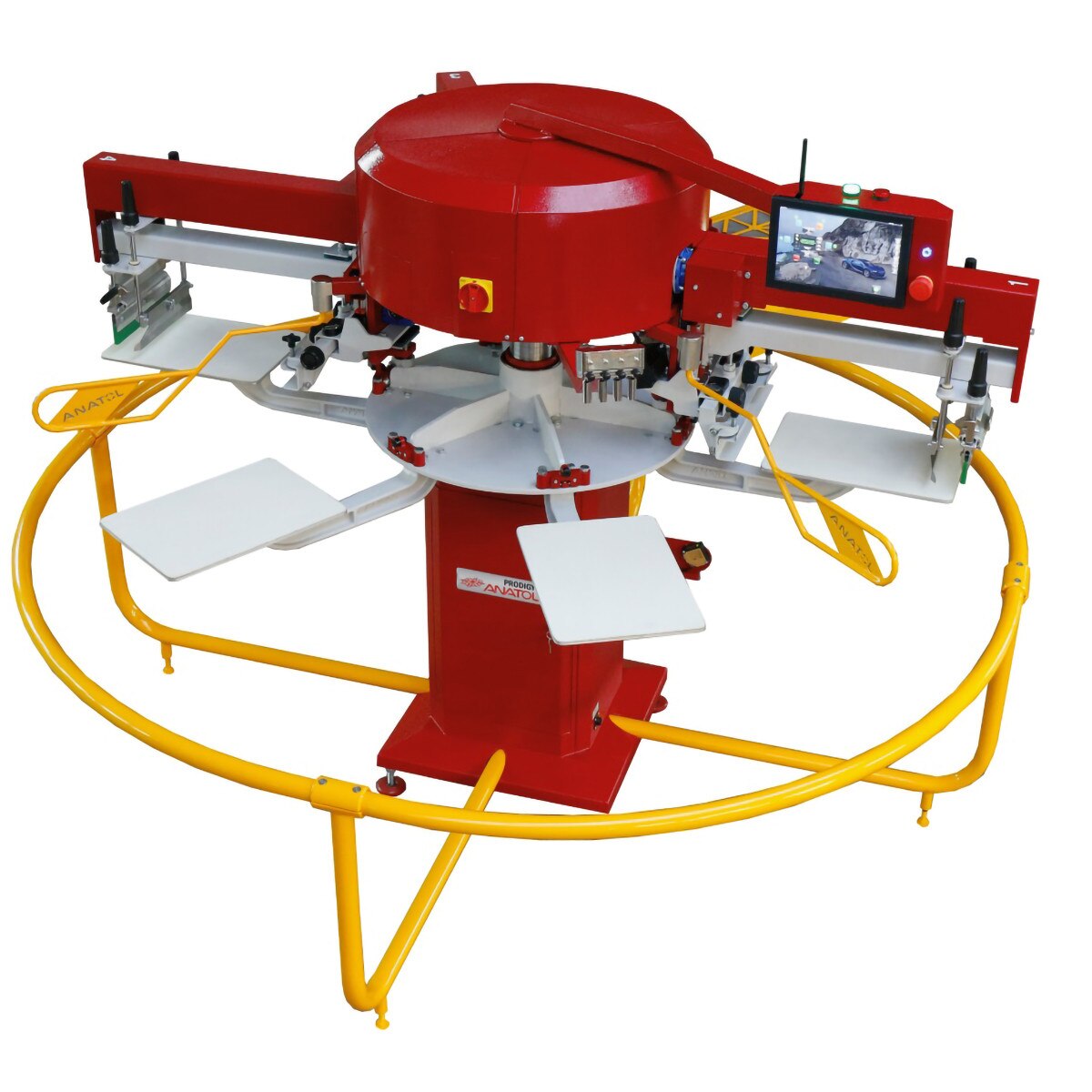

PRODIGY

Small Format Screen Printing Press

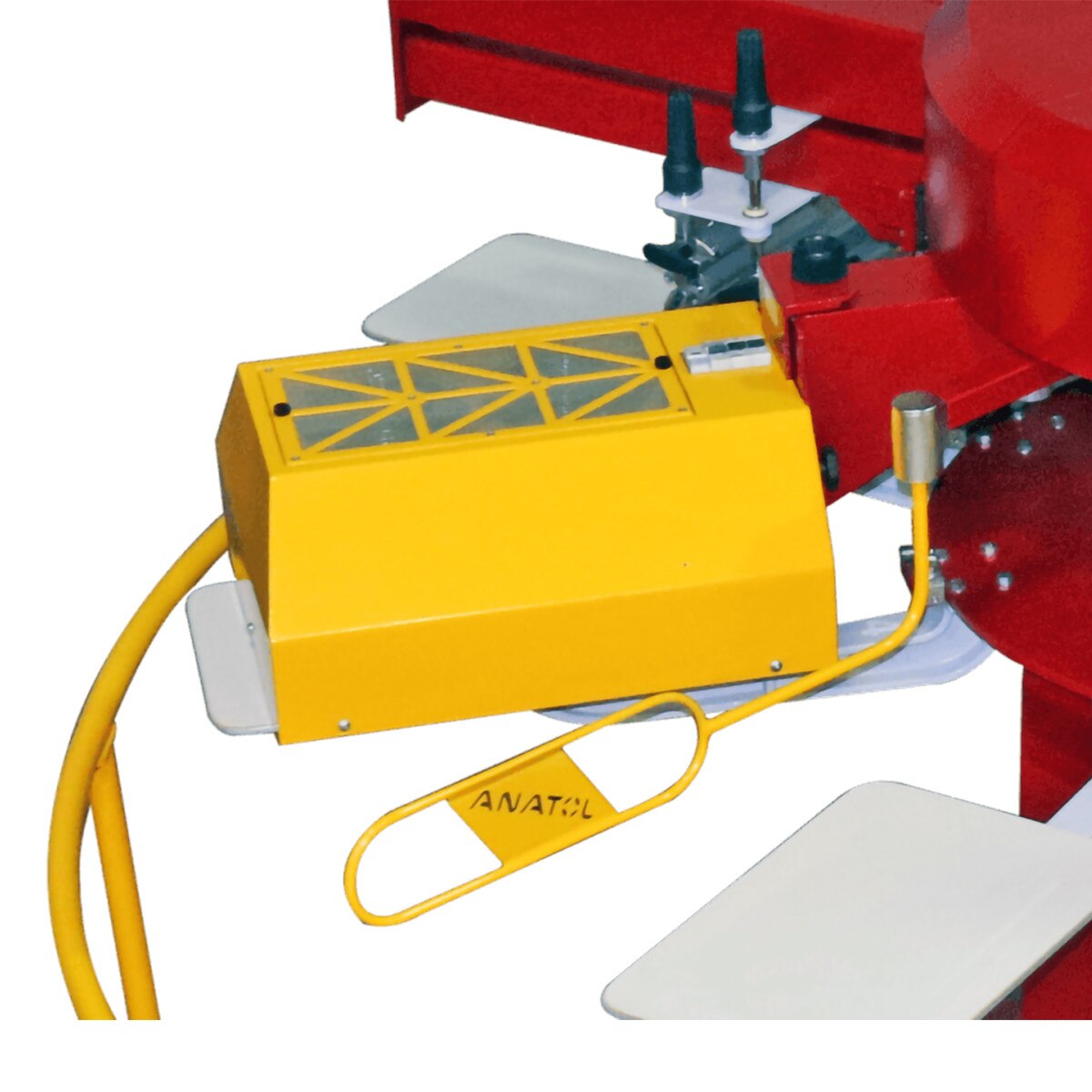

Not just for tags anymore! The new and improved Prodigy is Anatol’s all-servo automatic small format printer, perfect for smaller substrates like shirt tags, sleeves, tote bags, koozies and other promotional products. Capable of printing up to 1700 pieces per hour, the Prodigy is equipped with built-in forced air quartz flashes with air flow control to cure a wide variety of inks and substrates quickly and efficiently. The press is controlled via a touchscreen powered by Anatol Equipment’s exclusive Aries 2 operating system. The servo-driven indexer, lift and print heads provide a smooth, consistent print job every time. A built-in laser alignment system comes standard, making pallet location adjustments and apparel alignment quick, easy and reliable. The Prodigy is available with up to 8 stations, and prints in 2 to 5 colors, with a maximum image size of 10” x 12”.

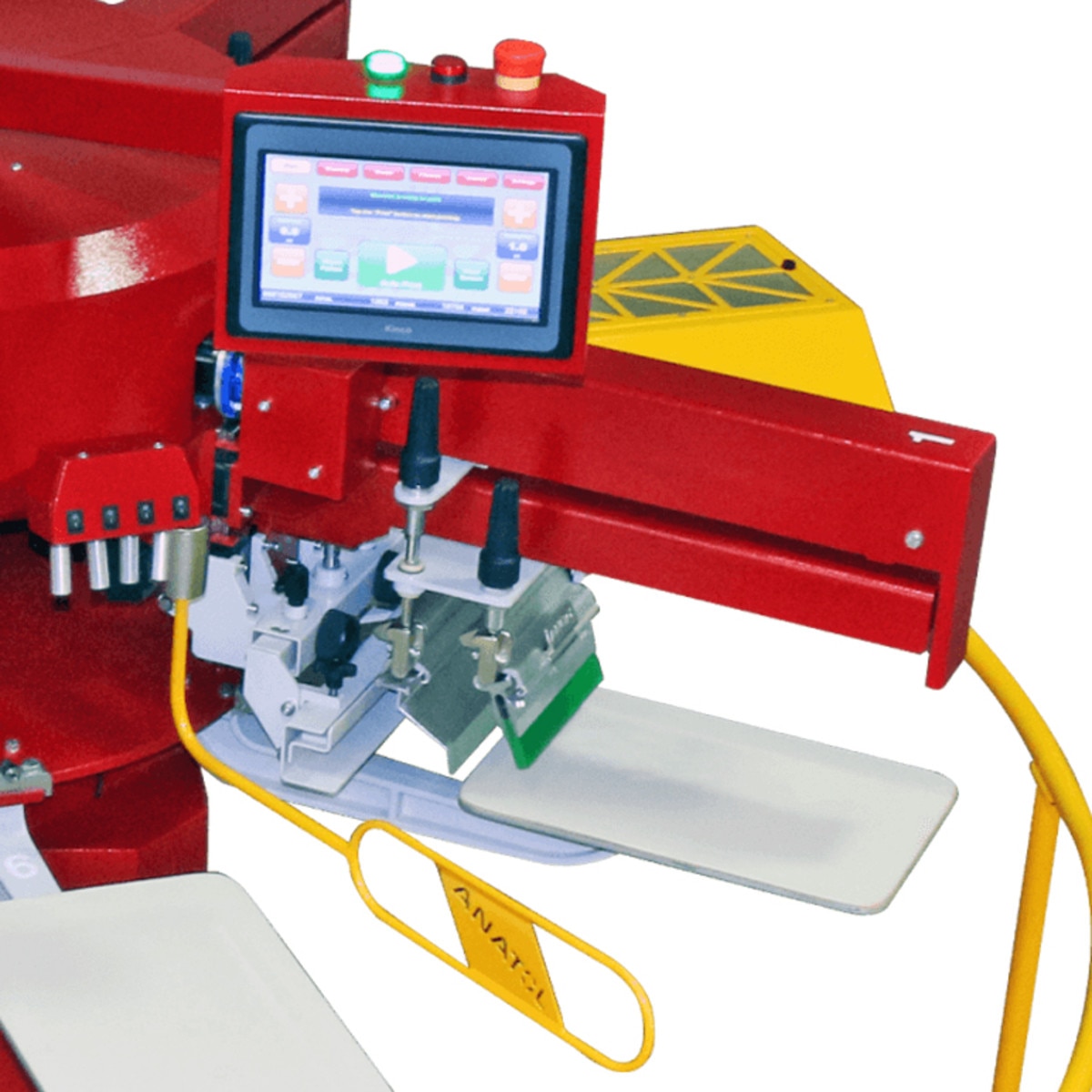

Touchscreen Controls

  • 10” touchscreen with Aries 2 operating system
  • Easy to program controls save on set-up time
  • Screen displays print count (dozen) and speed (pcs/hr)
  • Adjustable dwell times allow for adjustments to cycling speed and cool-down time
  • Digital stroke length adjustment
  • Save/recall job settings

Print Heads

  • Servo-electric print heads
  • Independent flood/print speed controlled
  • Multiple print strokes (1 - 9) per head
  • Quick-release squeegee and flood bar for fast changeover
  • Skip-Shirt sensor automatically detects shirts
  • Rear screen holders with mechanical clamps allow for quick and easy loading of screens

Tool-less Adjustment

  • Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
  • Three-point micro-registration (front-to-back, left-to-right and rotational movement) available for multicolor models

Pallets

  • Slide Style pallets with tool-less locking and unlocking for easy pallet changeover and adjustment
  • Rubber-coated aluminum pallets
  • Standard 8.5” x 11.6” pallets included (for machines with 8" x 8" print area)
  • Standard 11" x 16.5" pallets included (for machines with 10" x 12" print area)
  • Other pallets available upon request

Construction

  • Servo indexer
  • Heavy-duty rolled steel frame supports smooth, high speed production cycles
  • Small footprint accommodates tight spaces

Safety Systems

  • Industry's best safety bars provide a barrier protecting operators from rotating carousel
Optional Features
  • Available in custom configurations
  • Foot pedal to control indexing
  • Wide variety of specialty pallets available


Specifications


Prodigy 8″x8″

Stations/ColorsMaximum Print AreaMaximum Screen SizeStandard Pallet SizeDiameterWeightHeightMinimum Door Size StandardMinimum Door Size Disassembled# of Quartz Flashes/PowerElectrical Requirements
6/28” x 8”
20cm x 20cm
12” x 17.5”
31cm x 45cm
8.5” x 11.6”
22cm x 29cm
5’ 3”
160cm
661lbs
300kg
5’ 5”
165cm
4’ 1”
125cm
2’ 5”
75cm
2
2 x 1750W

1 Ph, 22 A, 208-230V, 50-60Hz

8/38” x 8”
20cm x 20cm
12” x 17.5”
31cm x 45cm
8.5” x 11.6”
22cm x 29cm
5’ 7”
170cm
771lbs
350kg
5’ 11”
180cm
4’ 7”
140cm
2’ 9”
85cm
3
3 x 1750W

1 Ph, 30 A, 208-230V, 50-60Hz

Prodigy 10″x12″

Stations/ColorsMaximum Print AreaMaximum Screen SizeStandard Pallet SizeDiameterWeightHeightMinimum Door Size StandardMinimum Door Size Disassembled# of Quartz Flashes/PowerElectrical Requirements
6/210” x 12”
25cm x 30cm
17” x 24”
43cm x 61cm
11” x 16.5”
28cm x 42cm
7’ 1”
215cm
1102lbs
500kg
5’ 11”
180cm
5’ 7”
170cm
2’ 7”
80cm
2
2 x 4000W

1 Ph, 47 A, 208-230V, 50-60Hz

3 Ph, 27 A, 208-230V, 50-60Hz

6/310” x 12”
25cm x 30cm
17” x 24”
43cm x 61cm
11” x 16.5”
28cm x 42cm
7’ 1”
215cm
1213lbs
550kg
5’ 11”
180cm
5’ 7”
170cm
2’ 7”
80cm
1
1 x 4000W

1 Ph, 29 A, 208-230V, 50-60Hz

3 Ph, 17 A, 208-230V, 50-60Hz

8/310” x 12”
25cm x 30cm
17” x 24”
43cm x 61cm
11” x 16.5”
28cm x 42cm
7’ 7”
230cm
1323lbs
600kg
5’ 11”
180cm
6’ 6”
200cm
3’ 2”
96cm
3
3 x 4000W

1 Ph, 68 A, 208-230V, 50-60Hz

3 Ph, 39 A, 208-230V, 50-60Hz

8/510” x 12”
25cm x 30cm
17” x 24”
43cm x 61cm
11” x 16.5”
28cm x 42cm
7’ 7”
230cm
1543lbs
700kg
5’ 11”
180cm
6’ 6”
200cm
3’ 2”
96cm
1
1 x 4000W

1 Ph, 33 A, 208-230V, 50-60Hz

3 Ph, 19 A, 208-230V, 50-60Hz
