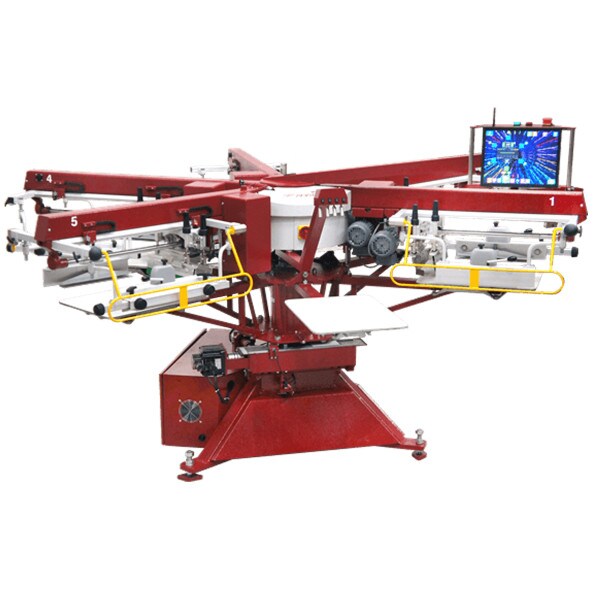

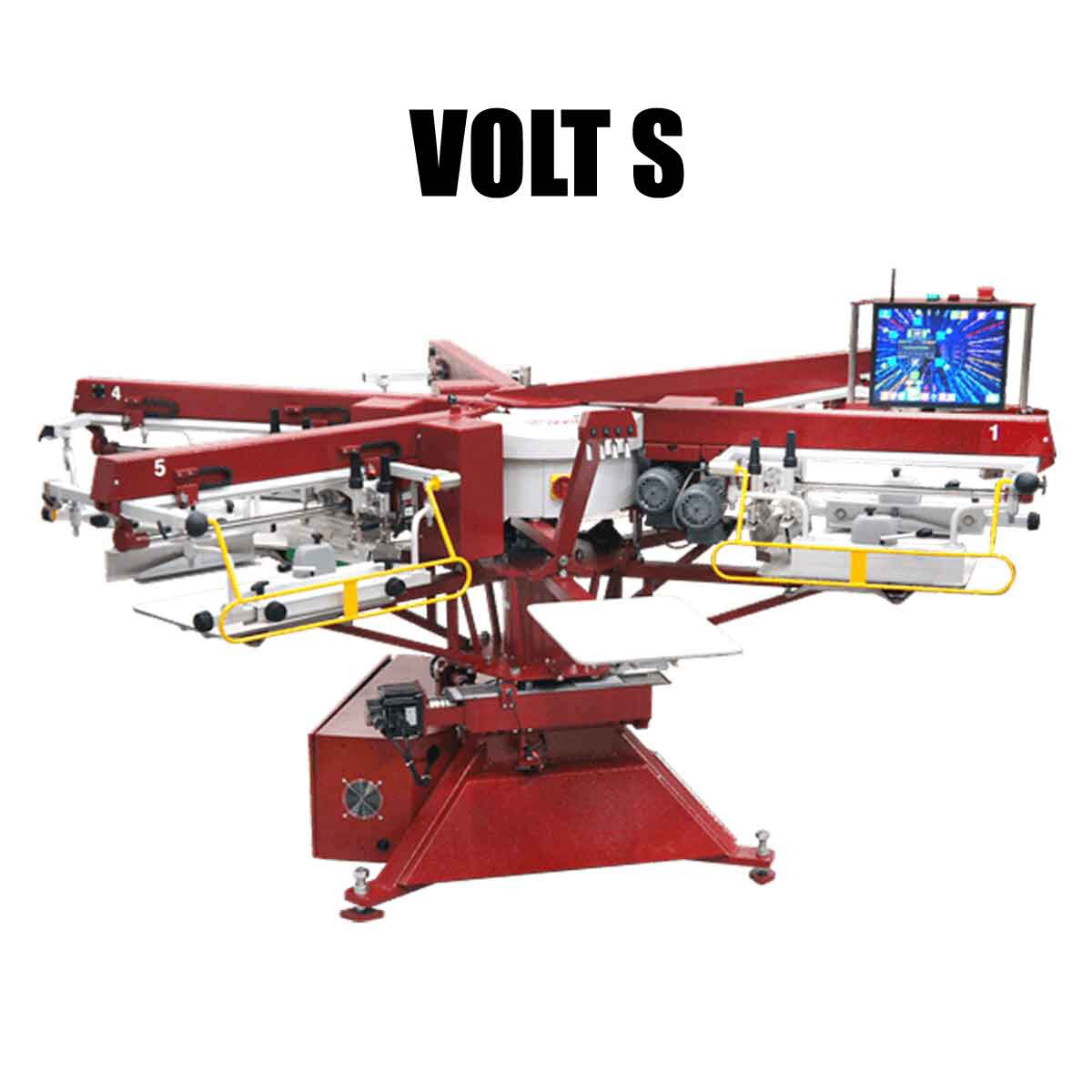

ANATOL ALL ELECTRIC VOLT S

Maintain the same type of stroke, force and accuracy on a consistent basis—time after time, year after year.


The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without the downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill in half compared to pneumatic automatic screen printing machines.

You just can’t beat an electric stroke on an industrial strength machine.


Print Area: 15” x 16”

Screen printing machine available in configurations of:

6 stations/2 colors up to 12 stations/11 colors


The VOLT S electric screen printing press is perfect if you need a t-shirt screen printing machine with a small footprint. It is ideal for small print shops transitioning to a first automatic press, as well as large shops that need a smaller press to expand production capacity. While small in size, there is nothing small about the VOLT S when it comes to performance, reliability and features. The 15” x 16” print area will meet the demands of most print jobs. The 21” x 28” maximum screen size will accommodate most of your existing screens.


The VOLT S electric screen printing machine offers the advanced features of our top of the line presses, like servo lift and indexing, electric print heads, digital off-contact and a 15” touchscreen on a flexible boom that can be turned to face any station. Like all VOLTs, there’s no compressor or chiller needed, which means less maintenance, more ease of use and smooth, quiet operation.





VOLT Press Automatic Screen Printing Machines main features

Touchscreen Controls

·       15” touchscreen with Aries 2 operating system

·       Easy operator access to all machine parameters

·       Program multiple heads simultaneously

·       Full speed control of both stroke directions

·       View real-time print count (dozen) and speed (pcs/hr)

·       Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode

·       Set pallet preheat temperature

·       Quickly set the same speed and print distance for all heads

Print Heads

·       AC electric print heads for a stronger, more even stroke

·       Smash button at load/unload stations to prevent printing on empty pallets

·       Adjustable side screen holders with new low-profile for easy access

·       True three-point micro-registration (front-to-back, left-to-right, and rotational movement)

Tool-less Adjustment

·       Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º

·       Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8" in increments of 0.01"

·       Squeegee/flood bar knobs with scale for user-friendly depth adjustments

·       Single lever quick-release squeegee and flood bars in print carriage

·       Speed Clamps, one-touch screen locks

Pallets

·       Servo lift and lower for smooth operation

·       Rubber-coated aluminum pallets

·       Tool-less locks for slide or quick release-style pallets

·       Precise four-point pallet leveling system

·       Standard 16” x 22” (18” x 22” on Volt XL) pallets included

·       other sizes available upon request

·       Choice of slide style or quick release pallets

Servo-Indexer

·       Precise control of pallet position +/- .001”

·       Provides smooth indexing with superior print consistency

·       Increase production with pinpoint control of acceleration and deceleration

·       Index direction: right and left

·       Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options

Construction

·       Heavy-duty rolled steel frame supports smooth, high speed production cycles

·       Ball-lead servo with internal lubrication system reduces vibration and maintenance costs

·       Industry’s best safety bars at each print head and load/unload station

·       Carousel safety barrier to prevent operators stepping into press

·       Servo-indexer lasts for decades



Specifications


Stations
Colors
Maximum
Print Area
Maximum
Screen Size
Standard
Pallet Size
Press
Diameter
Touchscreen SupportElectrical Requirements
06/0215″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’ 4”Boom1 ph 208/230v, 50/60 Hz, 16A
3 ph 208/230v, 50/60 Hz, 9A
06/0315″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’ 4”Boom1 ph 208/230v, 50/60 Hz, 17A
3 ph 208/230v, 50/60 Hz, 10A
06/0415″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’ 4”Boom1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 11A
06/0515″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
9’ 4”Boom1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 12A
08/0615″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
10’ 2″Boom1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/0715″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
10’ 2″Boom1 ph 208/230v, 50/60 Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/0815″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
11’ 2″Boom1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/0915″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
11’ 2″Boom1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/1015″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
12’ 4″Boom1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/1115″ x 16″
38.1cm x 40.6cm
21″ x 28″
54cm x 71cm
16″ x 22″
41cm x 56cm
12’ 4″Boom1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A
