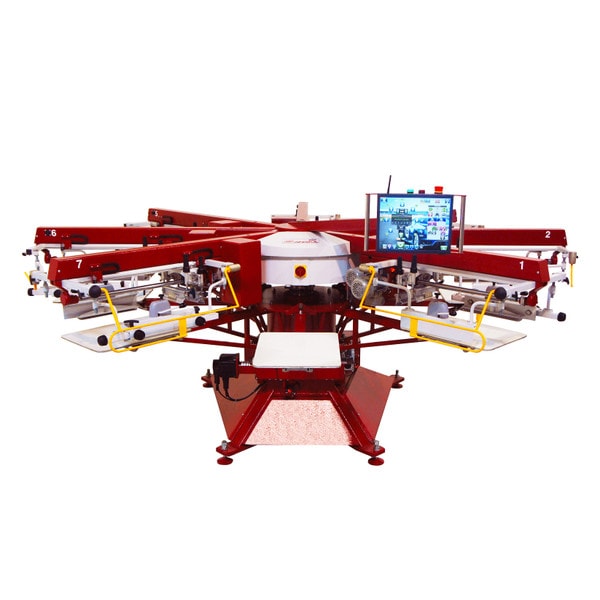

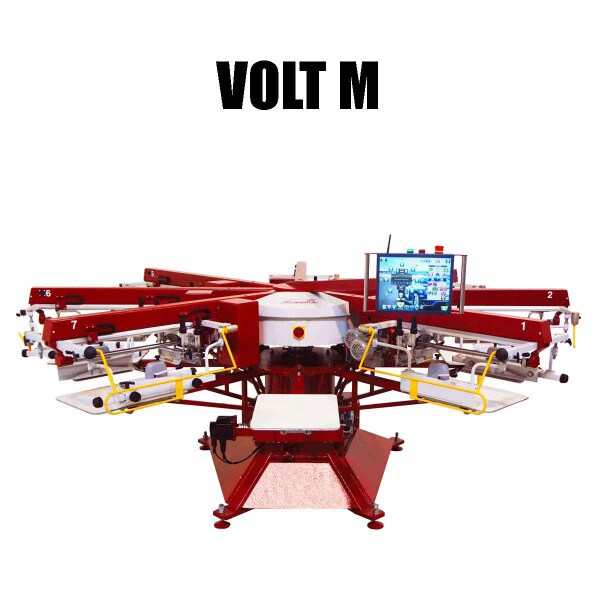

ANATOL ALL ELECTRIC VOLT M
Maintain the same type of stroke, force and accuracy on a consistent basis—time after time, year after year.
The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without the downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill in half compared to pneumatic automatic screen printing machines.
Digital off-contact allows for adjustments in hundredths of an inch for outstanding image quality and registration.
Print Area: 16” x 18”
Screen printing machine available in configurations of:
6 stations/2 colors up to 14 stations/12 colors
Most customers’ demands can be met with this compact yet powerful t-shirt screen printing machine. The VOLT M features the most common print area, 16” x 18”. The touchscreen control panel is mounted on a flexible boom arm that lets you place the controls where you need them.
The VOLT M professional-grade electric screen printing press is available in configurations from 6 stations/2 colors through 14 stations/12 colors.
VOLT Press Automatic Screen Printing Machines main features
Touchscreen Controls
· 15” touchscreen with Aries 2 operating system
· Easy operator access to all machine parameters
· Program multiple heads simultaneously
· Full speed control of both stroke directions
· View real-time print count (dozen) and speed (pcs/hr)
· Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode
· Set pallet preheat temperature
· Quickly set the same speed and print distance for all heads
Print Heads
· AC electric print heads for a stronger, more even stroke
· Smash button at load/unload stations to prevent printing on empty pallets
· Adjustable side screen holders with new low-profile for easy access
· True three-point micro-registration (front-to-back, left-to-right, and rotational movement)
Tool-less Adjustment
· Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
· Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8" in increments of 0.01"
· Squeegee/flood bar knobs with scale for user-friendly depth adjustments
· Single lever quick-release squeegee and flood bars in print carriage
· Speed Clamps, one-touch screen locks
Pallets
· Servo lift and lower for smooth operation
· Rubber-coated aluminum pallets
· Tool-less locks for slide or quick release-style pallets
· Precise four-point pallet leveling system
· Standard 16” x 22” (18” x 22” on Volt XL) pallets included
· other sizes available upon request
· Choice of slide style or quick release pallets
Servo-Indexer
· Precise control of pallet position +/- .001”
· Provides smooth indexing with superior print consistency
· Increase production with pinpoint control of acceleration and deceleration
· Index direction: right and left
· Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options
Construction
· Heavy-duty rolled steel frame supports smooth, high speed production cycles
· Ball-lead servo with internal lubrication system reduces vibration and maintenance costs
· Industry’s best safety bars at each print head and load/unload station
· Carousel safety barrier to prevent operators stepping into press
· Servo-indexer lasts for decades
Specifications
Stations Colors | Maximum Print Area | Maximum Screen Size | Standard Pallet Size | Press Diameter | Stationary Arm or Boom Touchscreen Support | Electrical Requirements |
---|---|---|---|---|---|---|
06/02 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 9A |
06/03 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 10A |
06/04 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A |
06/05 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 9’8” | Boom | 1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A |
08/06 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 10’11” | Boom | 1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A |
08/07 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 10’11” | Boom | 1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A |
10/08 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 12’3″ | Boom | 1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A |
10/09 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 12’3″ | Boom | 1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A |
12/10 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 13’6” | Boom | 1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A |
12/11 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 13’6” | Boom | 1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A |
14/12 | 16″ x 18″ 40.6cm x 45.7cm | 23″ x 33″ 58.4cm x 83.8cm | 16″ x 22″ 41cm x 56cm | 15’7″ | Boom | 3 ph 208/230v, 50/60 Hz, 23A |
