ANATOL ALL ELECTRIC VOLT XL
Details
ANATOL ALL ELECTRIC VOLT XL
Maintain the same type of stroke, force and accuracy on a consistent basis—time after time, year after year.
The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without the downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill in half compared to pneumatic automatic screen printing machines.

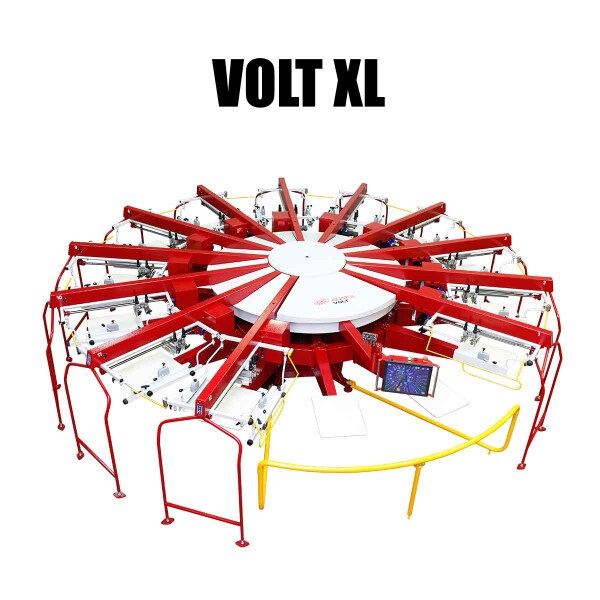

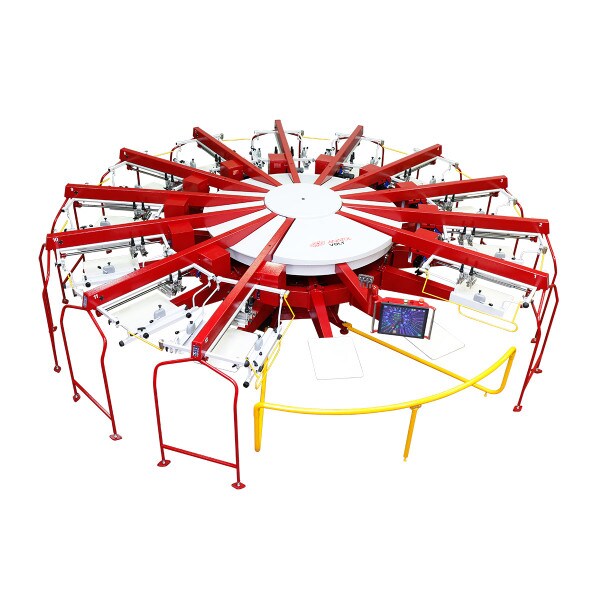

The VOLT XL electric screen printing machine is designed to accommodate the ever-increasing demand for larger print areas. The 20” x 28” print area will handle almost all of your customers’ needs. Speed, reliability, and ease of use are the trademarks of the Volt XL.
You just can’t beat an electric stroke on an industrial strength machine.
Print Area: 20” x 28”
Screen printing machine available in configurations of:
8 stations/6 colors up to 20 stations/18 colors
The VOLT XL professional electric screen printing press is available in two standard configurations:
- The VOLT XL 8 station/6 colors through 12 station/10 colors have a 15” touchscreen mounted on a flexible boom arm that lets you move the controls to any station. (A 17” touchscreen is available as an optional feature.)

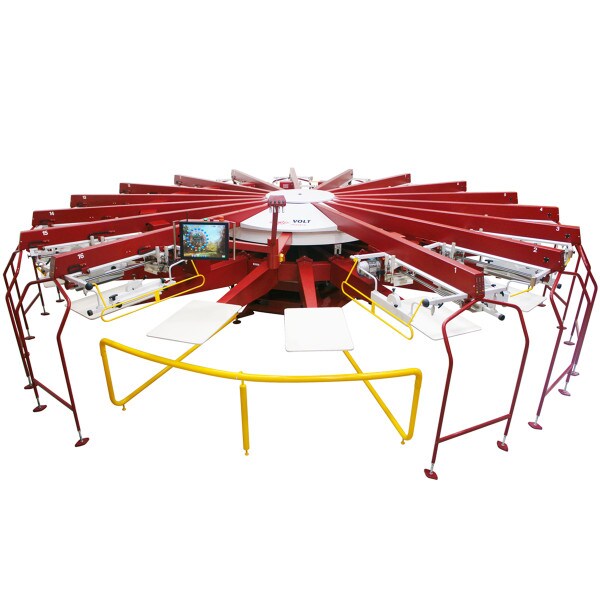

- 18 station/16 color through 20 station/18 color models come with a stationary 17” touchscreen control panel and individual membrane control panels to give you complete control of each print station. Supports on each print head give you additional support for smooth print runs every time.
VOLT Press Automatic Screen Printing Machines main features
Touchscreen Controls
· 15” touchscreen with Aries 2 operating system
· Easy operator access to all machine parameters
· Program multiple heads simultaneously
· Full speed control of both stroke directions
· View real-time print count (dozen) and speed (pcs/hr)
· Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode
· Set pallet preheat temperature
· Quickly set the same speed and print distance for all heads
Print Heads
· AC electric print heads for a stronger, more even stroke
· Smash button at load/unload stations to prevent printing on empty pallets
· Adjustable side screen holders with new low-profile for easy access
· True three-point micro-registration (front-to-back, left-to-right, and rotational movement)
Tool-less Adjustment
· Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
· Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8" in increments of 0.01"
· Squeegee/flood bar knobs with scale for user-friendly depth adjustments
· Single lever quick-release squeegee and flood bars in print carriage
· Speed Clamps, one-touch screen locks
Pallets
· Servo lift and lower for smooth operation
· Rubber-coated aluminum pallets
· Tool-less locks for slide or quick release-style pallets
· Precise four-point pallet leveling system
· Standard 16” x 22” (18” x 22” on Volt XL) pallets included
· other sizes available upon request
· Choice of slide style or quick release pallets
Servo-Indexer
· Precise control of pallet position +/- .001”
· Provides smooth indexing with superior print consistency
· Increase production with pinpoint control of acceleration and deceleration
· Index direction: right and left
· Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options
Construction
· Heavy-duty rolled steel frame supports smooth, high speed production cycles
· Ball-lead servo with internal lubrication system reduces vibration and maintenance costs
· Industry’s best safety bars at each print head and load/unload station
· Carousel safety barrier to prevent operators stepping into press
· Servo-indexer lasts for decades
Specifications
Stations Colors | Maximum | Maximum | Standard | Press | Stationary Arm | Electrical Requirements |
08/06 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 13’10” | Boom | 1 ph 208/230v, 50/60 Hz, 20A |
08/07 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 13’10” | Boom | 1 ph 208/230v, 50/60Hz, 21A |
10/08 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 15’ | Boom | 1 ph 208/230v, 50/60 Hz, 31A |
10/09 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 15’ | Boom | 1 ph 208/230v, 50/60 Hz, 32A |
12/10 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 16’6” | Boom | 1 ph 208/230v, 50/60 Hz, 36A |
12/11 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 16’6” | Boom | 1 ph 208/230v, 50/60 Hz, 37A |
14/12 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 18’ | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 23A |
16/14 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 19’6” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 32A |
18/16 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 20’10” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 36A |
20/18 | 20″ x 28″ | 26″ x 43″ | 16″ x 22″ | 22’8” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 38A |
