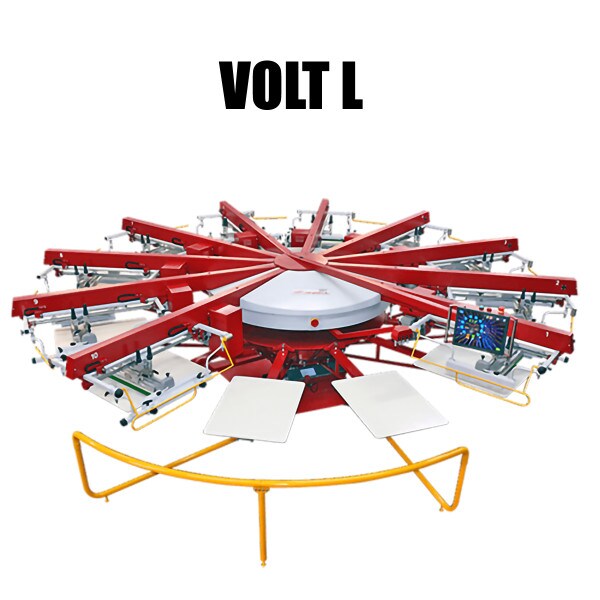

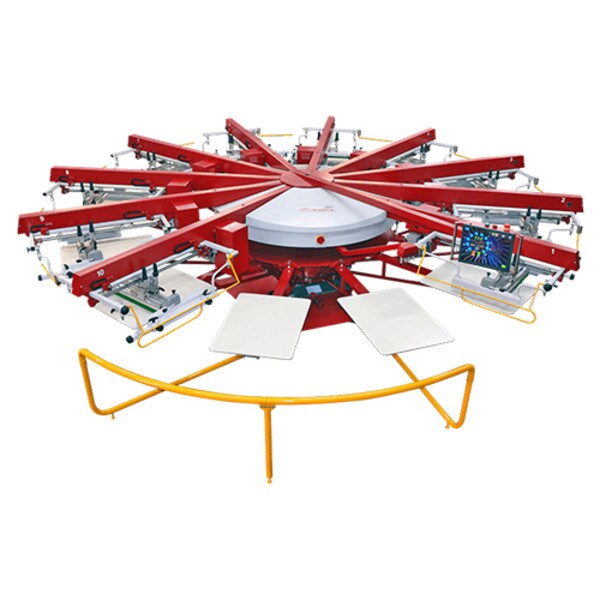

ANATOL ALL ELECTRIC VOLT L
Maintain the same type of stroke, force and accuracy on a consistent basis—time after time, year after year.
The All-Electric VOLT Series Professional-Grade Electric Automatic Screen Printing Machines
Automatic VOLT — The Future of Screen Printing…TODAY
The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without the downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill in half compared to pneumatic automatic screen printing machines.
It’s designed for maximum ease of use with a 15” touchscreen interface, one touch digital off-contact controls, tool-less stroke and micro registration adjustments, and Speed Clamps screen locks. Anatol offers VOLTs to benefit shops of all sizes, with four models: VOLT S, VOLT M, VOLT L and VOLT XL, in possible configurations of 6 stations/2 colors to 20 stations/18 colors.
Print Area: 20” x 20”
Screen printing machine available in configurations of:
6 stations/4 colors up to 20 stations/18 colors
The VOLT L electric screen printing machine is designed for print shops whose customers require a larger print area. The 20” x 20” image area fits the demand for most all over print jobs.
The VOLT L professional electric screen printing press comes in two types of configurations:
1. The 6 station/4 color through 12 station/10 color models have a 15” touchscreen mounted on a flexible boom arm to let you place the controls where you want them.
2. The 18 station/16 color and larger Volt L models come with membrane control panels on each print head that allow you to control each station individually. Supports on each print head and a stationary arm for the 17” touchscreen provide support for smooth print cycles even at high speeds.
VOLT Press Automatic Screen Printing Machines main features
Touchscreen Controls
· 15” touchscreen with Aries 2 operating system
· Easy operator access to all machine parameters
· Program multiple heads simultaneously
· Full speed control of both stroke directions
· View real-time print count (dozen) and speed (pcs/hr)
· Save all parameters of a stored job: off-contact, indexer speed, print head speed, print area, number of strokes, flash cure time and temperature, color design, mode
· Set pallet preheat temperature
· Quickly set the same speed and print distance for all heads
Print Heads
· AC electric print heads for a stronger, more even stroke
· Smash button at load/unload stations to prevent printing on empty pallets
· Adjustable side screen holders with new low-profile for easy access
· True three-point micro-registration (front-to-back, left-to-right, and rotational movement)
Tool-less Adjustment
· Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
· Digital central off-contact precisely adjusts all print stations simultaneously at a range of 0-3/8" in increments of 0.01"
· Squeegee/flood bar knobs with scale for user-friendly depth adjustments
· Single lever quick-release squeegee and flood bars in print carriage
· Speed Clamps, one-touch screen locks
Pallets
· Servo lift and lower for smooth operation
· Rubber-coated aluminum pallets
· Tool-less locks for slide or quick release-style pallets
· Precise four-point pallet leveling system
· Standard 16” x 22” (18” x 22” on Volt XL) pallets included
· other sizes available upon request
· Choice of slide style or quick release pallets
Servo-Indexer
· Precise control of pallet position +/- .001”
· Provides smooth indexing with superior print consistency
· Increase production with pinpoint control of acceleration and deceleration
· Index direction: right and left
· Programmed with Step-Back, Multi Step-Back, and Cycle-type indexing options
Construction
· Heavy-duty rolled steel frame supports smooth, high speed production cycles
· Ball-lead servo with internal lubrication system reduces vibration and maintenance costs
· Industry’s best safety bars at each print head and load/unload station
· Carousel safety barrier to prevent operators stepping into press
· Servo-indexer lasts for decades
Specifications
Stations | Maximum | Maximum | Standard | Press | Stationary Arm | Electrical Requirements |
06/04 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 10’5” | Boom | 1 ph 208/230v, 50/60 Hz, 18A |
06/05 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 10’5” | Boom | 1 ph 208/230v, 50/60 Hz, 19A |
08/06 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 12’0” | Boom | 1 ph 208/230v, 50/60 Hz, 20A |
08/07 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 12’0” | Boom | 1 ph 208/230v, 50/60 Hz, 21A |
10/08 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 13’8” | Boom | 1 ph 208/230v, 50/60 Hz, 31A |
10/09 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 13’8” | Boom | 1 ph 208/230v, 50/60 Hz, 32A |
12/10 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 15’3” | Boom | 1 ph 208/230v, 50/60 Hz, 36A |
12/11 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 15’3” | Boom | 1 ph 208/230v, 50/60 Hz, 37A |
14/12 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 16’8” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 23A |
16/14 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 18’4″ | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 32A |
18/16 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 19’8” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 36A |
20/18 | 20″ x 20″ | 26″ x 36″ | 16″ x 22″ | 21’4” | Stationary Arm | 3 ph 208/230v, 50/60 Hz, 38A |
