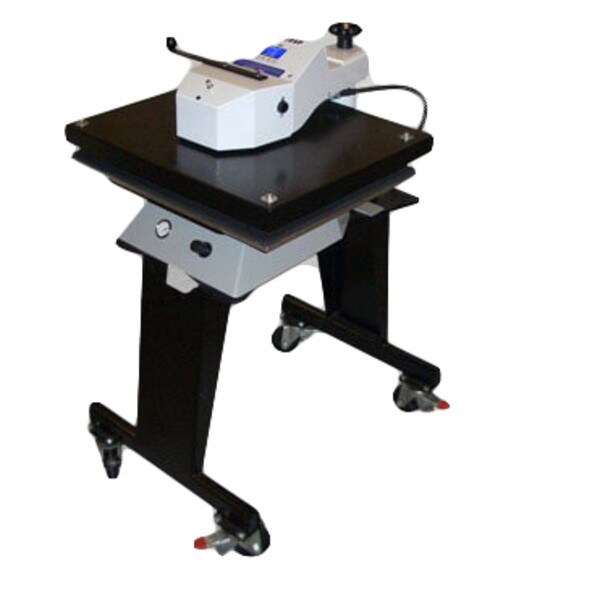

DK25SP 20X25 AUTO JUMBO DIGITAL SWINGER HEAT PRESS
Details
The Digital Knight DK25SP is air-operated, automatic 20x25 oversized swing-away heat press with a state-of-the-art control system and heavy-duty solid steel welded framework. It’s smooth automatic pressing and push-button activation provides a productive, fatigue-free operation.
The 20x25 size of the heat platen is perfect for sublimation and large format materials pressing. The heat platen uses SuperCoil-Microwinding™ heater technology, which is a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times.
The controller uses an easy to read oversized-digit LCD display to show time and temperature simultaneously, and the temperature readout is accurate within +-2°F. Comes with 70 programmable presets for saving common application settings, and the press features a high accuracy pressure regulator and pressure gauge for specific psi settings. The press is adjustable to accommodate materials from fabric thickness all the way up to 1" thick substrates.
Includes includes a stand and lockable heavy-duty casters as well. For the ease of high-pressure air operated operation and 20x25 platen sized pressing area, the DK25SP is the ideal solution.
FEATURES
- Same features as the DK20SP (Air Op Automatic) but with an oversized 20" x 25" heat platen
- Fully digital temperature control 32°-600°F range
- Automatic digital timer & dual pre-press timer
- Air regulator and gauge 20-100 PSI range (compressor req)
- Total applied force of 3000 lbs max
- 70 Programmable presets
- Solid steel welded framework
- Interchangeable tables
- SuperCoil-Microwinding™heater technology
- Accommodates materials up to 2" thick
- Temperature readout accuracy +-2°F - can show °C or °F
- User selectable end-of-cycle alarms
- Records number of pressing cycles done
- Teflon-coated 3/4" thick heat platen
- Heavy duty stand with lockable casters
- Custom large sizes available (call factory)
SPECS
- Air Compressor Required (min): 7gal, 1cfm, 100psi, 1/4" line
- Weight: 480 Lbs
- Electrical: 4500W / 21A / 220V(only)
- Shipping Dims: 36" D x 36" W x 48" H
