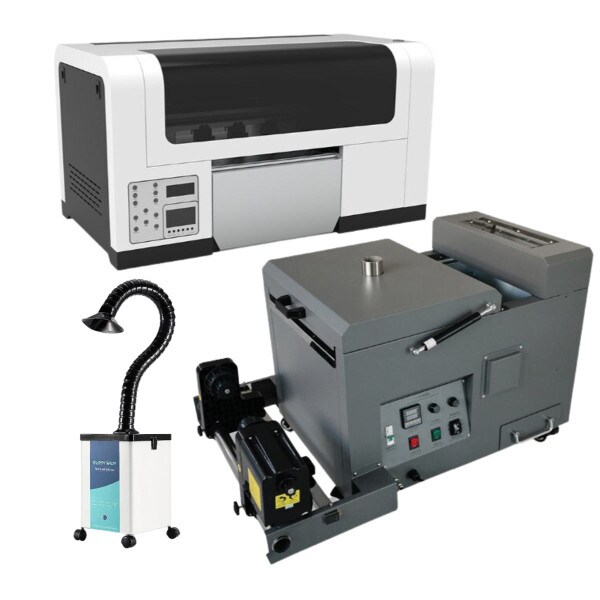

LEGEND DTF A3 13" PRINTER/ DRYER/FUME SYSTEM
This bundle includes the Printer/Dryer-Shaker/Fume Extractor - with Laptop and software.
DTF film as wide as 13.4 inches can be handled by the CALCA DTF powder shaker and dryer machine.
Printing on non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and other materials using DTF offers up a world of options. It is effective on both light and dark materials.
By evenly distributing, then melting the required quantity of adhesive material right onto your printed image, this all-in-one dtf powder shaker unit takes over, saving time, effort, and money.
Nylon, chemical fiber, cotton, leather, swimwear, diving gear, PVC, and EVA are examples of appropriate media.
Spreading structure for powder: The motor rotates the brush to brush the hot, melted powder out of the spreading box.
Device for shaking powder: The motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
Printer Technical Specs:
A3 (300mm) maximum print width
Dual Epson XP-600 Printheads
Ink Sort: Textile Pigment Ink
500ml per color ink bottle capacity
Media: PET Film
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
Maximum Roll Weight: 396lbs (20kg)
Media Heater: Pre / Rear Heater (Can be controlled separately)
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 8m²/ h; 6 pass: 5m²/ h; 8 pass: 3m²/ h
Printing Resolution: 360 x 1800dpi; 360 x 2400dpi; 360 x 3600dpi (4Pass, 6Pass, 8Pass)
Interface: Gigabit Network Port
Printing Software: Flexi PhotoPrint RIP
Print Head Cleaning: Automatic
Printer Size: 38.6in x 25.6in x 20.9in (980mm x 650mm x 530mm)
Printer Weight: 198lbs (90kg)
Packing Size: 43.3in x 27.8in x 30.5in (1100mm x 705mm x 775mm)
Gross Weight: 265lbs (120kg)
• Working Power Supply: AC110V / 220V, 50HZ / 60HZ, 1 phase.
• Current: 11A / 6A, 1200W
• Operating System: Win7 / Win10
• Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity
• Relative Humidity: 40-60%
CALCA Brand: USA registered
Maximum Shake Powder Width: 340mm (13.4inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating and Drying Function: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating Mode: Upper drying heating
Machine Size: 35.7in x 21.3in x 22.6in (907mm x 542mm x 574mm)
Powder Shaker and Dryer Weight: 79.2lbs (36kg)
Packaging Size: 29.5in x 23.4in x 23.2in (750mm x 595mm x 590mm)
Gross Weight: 110lbs (50kg)
Working Power Supply:AC110V, 50hz / 60hz, 1 phase.
Current: 15A, 1650W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
Fume Extractor Specifications:
99.97 Purification Rate
106 CFM Airflow
Package Weight: 21.1 x 17.2 x 15.3
Weight: 25.1 lbs
